Positioning Blocks

Caldwell offers a variety of Positioning Blocks with solutions for casement windows: Euro groove or surface mount, frame or vent mounting.

Product features

Positioning Blocks to prevent vent sagging for casement windows

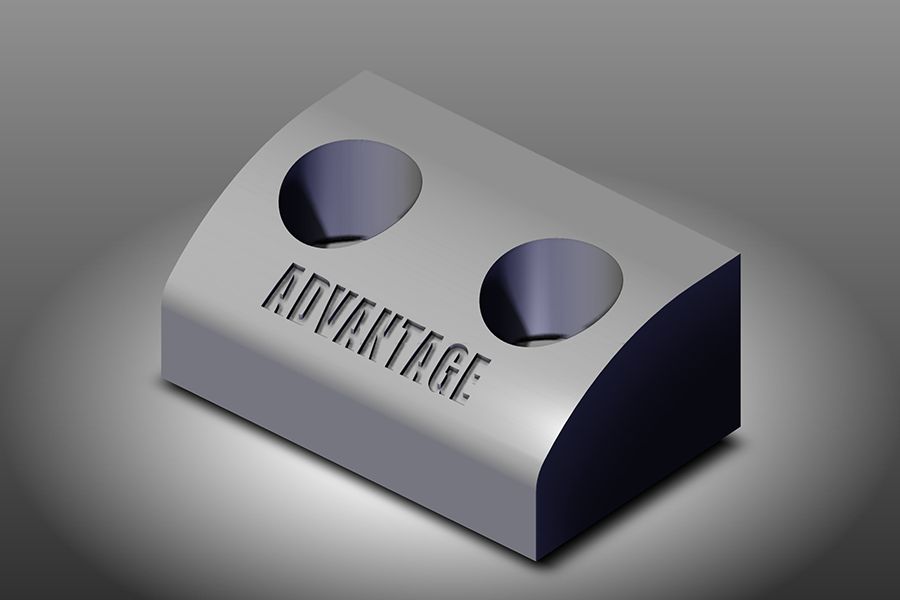

1429-595 Positioning Block: 0.595″

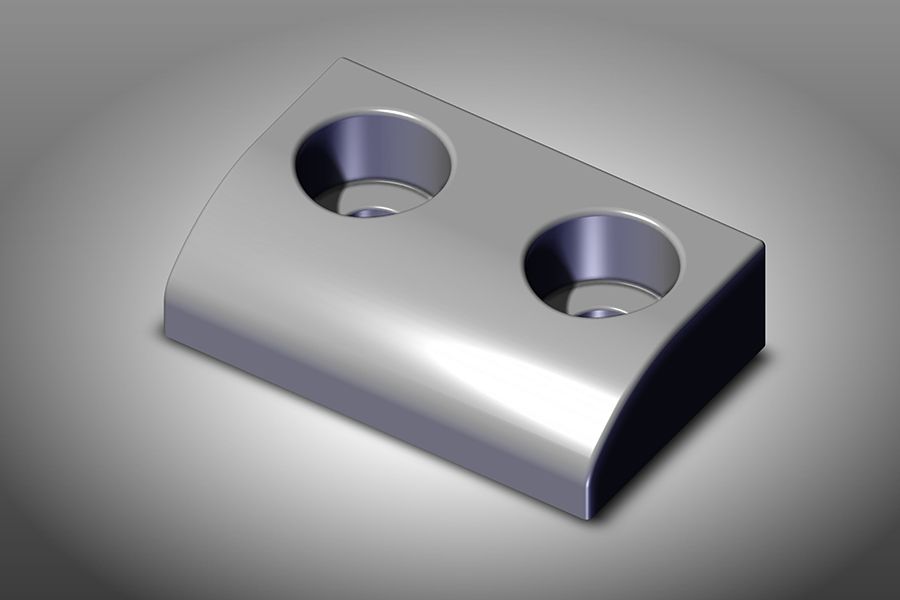

1487-375 Positioning Block: 0.375″

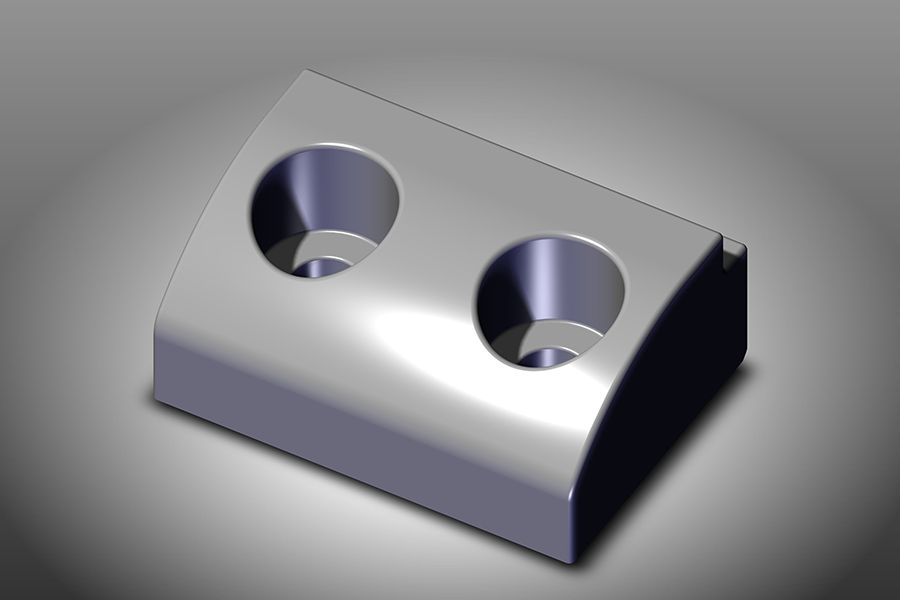

1488-595 Positioning Block: 0.595″

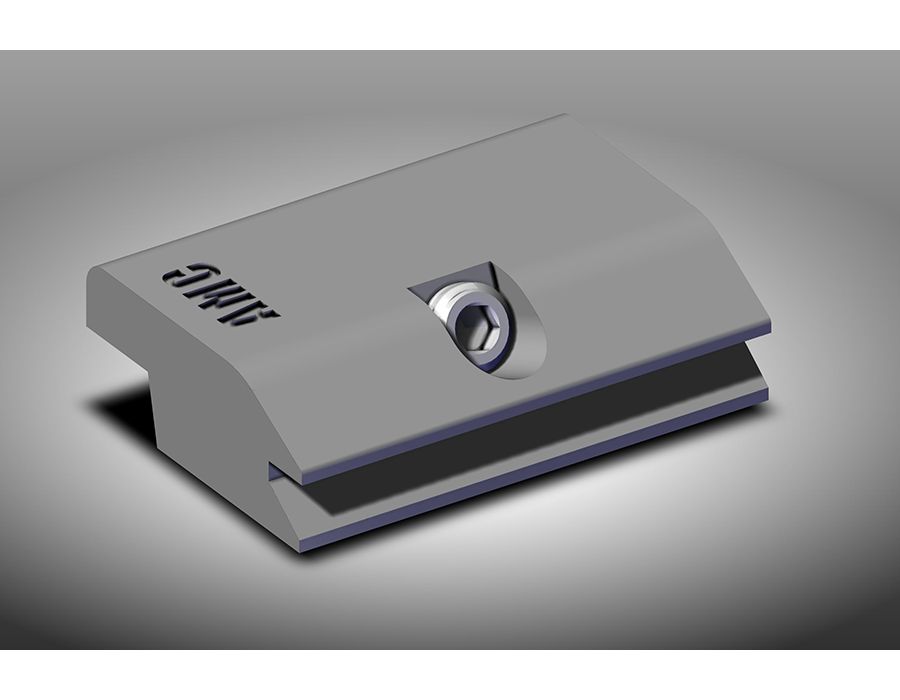

1550 Positioning Block: 0.165″

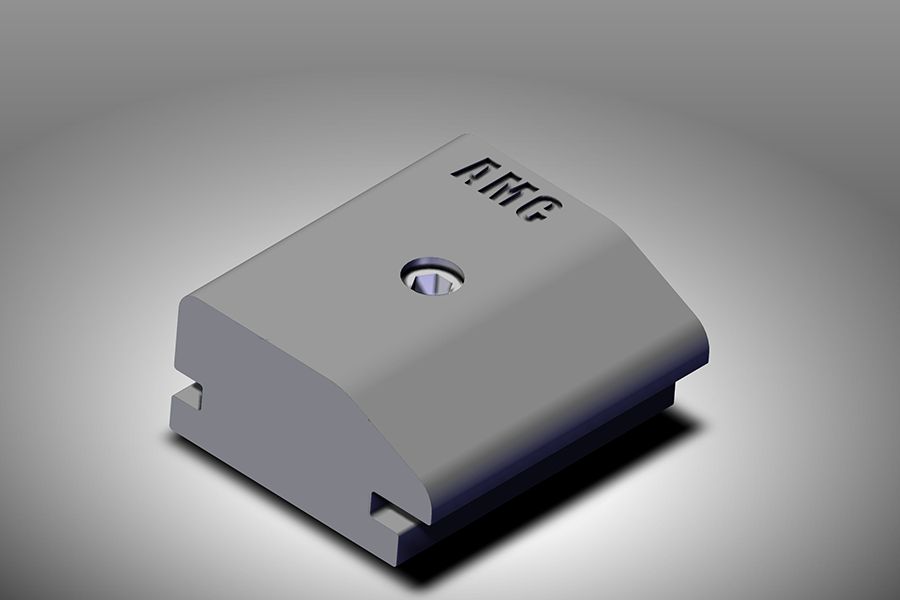

1551 Positioning Block: 0.250″

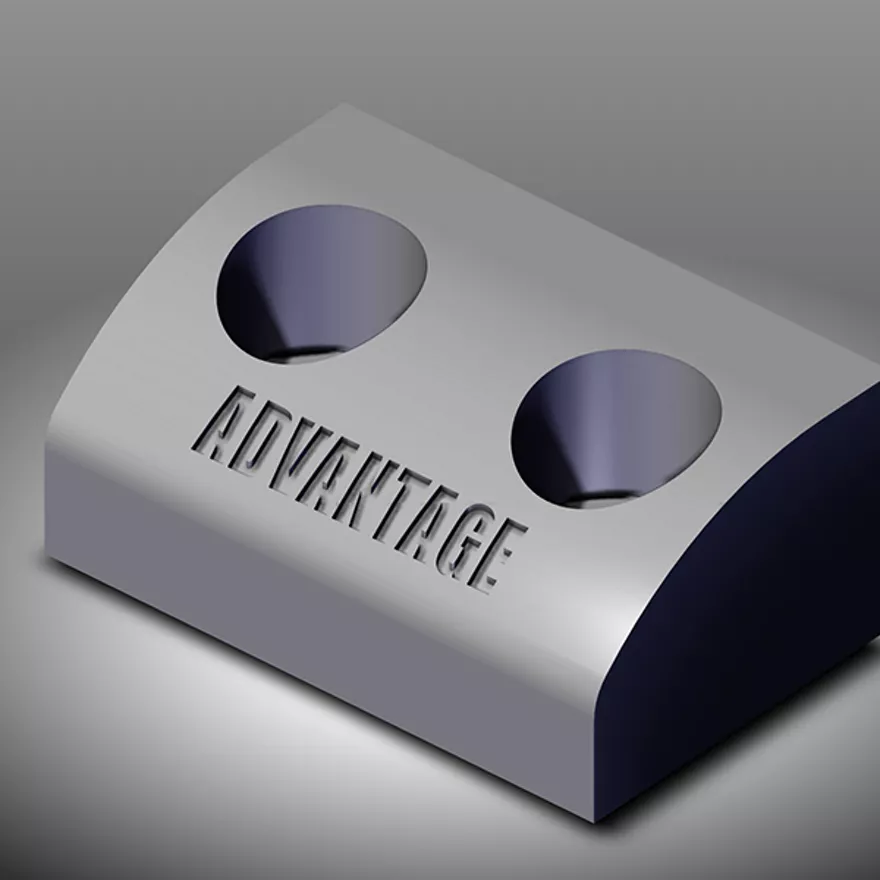

1429-595 Positioning Block

WINDOW TYPE Surface Mount or Euro Groove
MATERIAL TYPE Acetal, Black
POSITIONING BLOCK SIZE See Outline Drawings for Sizes
Shims are available to increase stack height.
Customer Design and Engineering Support Available.
Contact Caldwell for Application Dependent Questions.
1488-595 Positioning Block Outline Drawing(PDF, 92 KB)
1429-595 Positioning Block Outline Drawing(PDF, 363 KB)
1550 & 1551 Positioning Block Outline Drawing(PDF, 573 KB)
1487-375 Positioning Block Outline Drawing(PDF, 94 KB)
