Drive Rod

8030 Drive Rod, 8032 Drive Rod, 8032 Drive Rod Impact, 8038 Drive Rod

Standard and impact drive rods for vent mounted Euro groove applications.

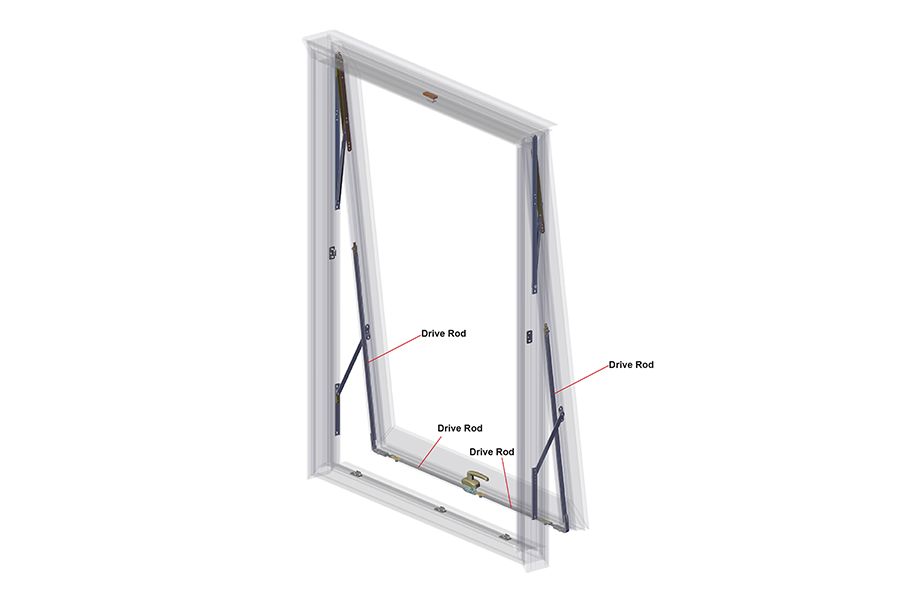

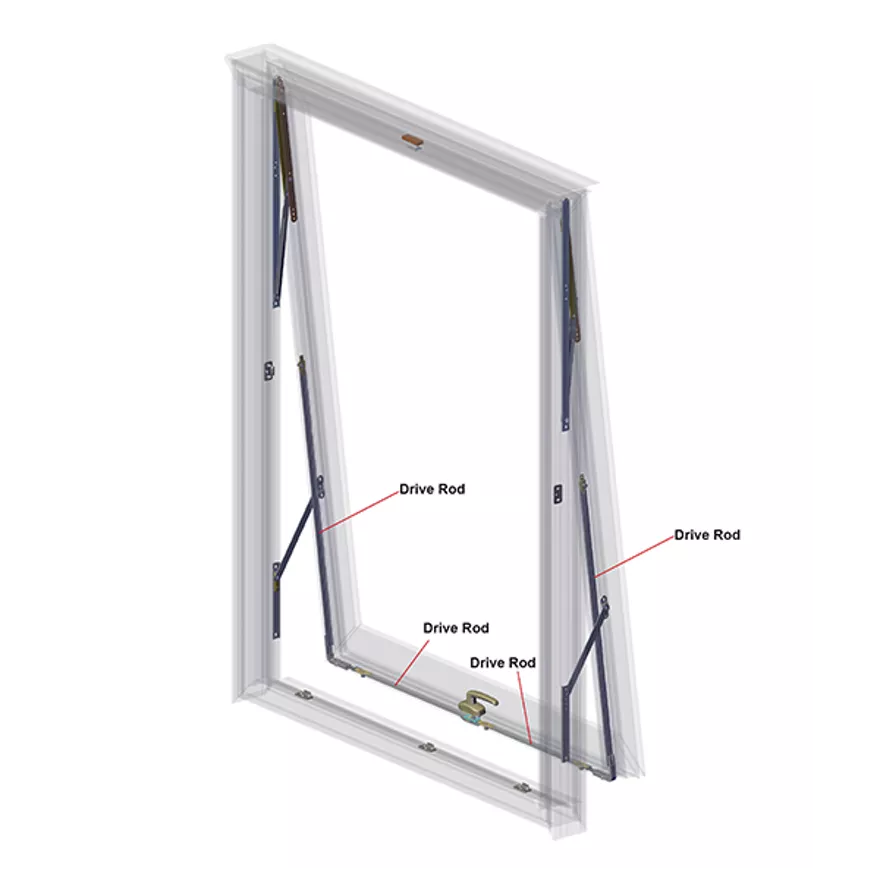

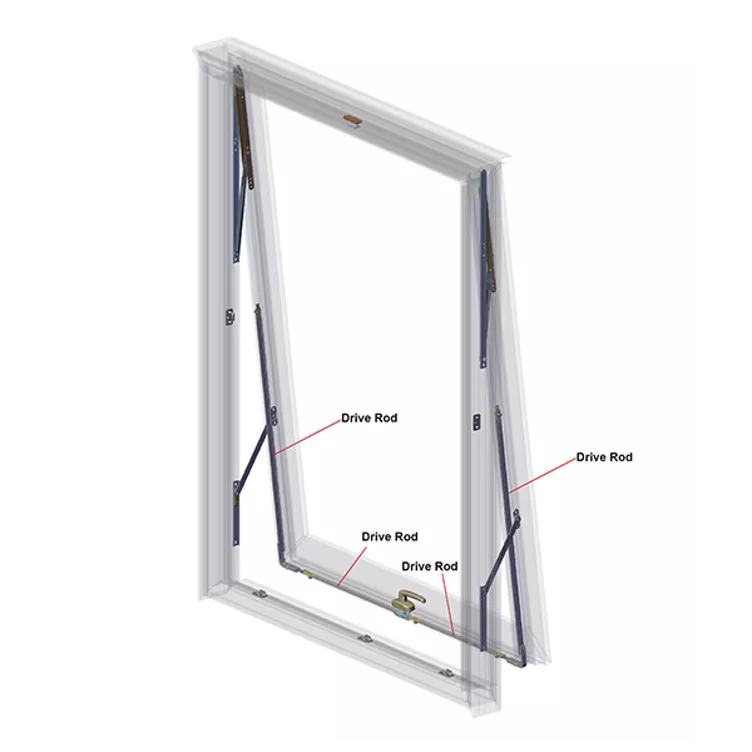

Drive Rod location

WINDOW TYPE Euro groove
MOUNT LOCATION Vent
CUSTOM BAR LENGTHS Available
MATERIAL TYPE Aluminium
FOR USE WITH A CORNER DRIVE Yes
Custom Sizes & Designs Available- Contact Caldwell for Details
8038 Drive Rod Outline Drawing(PDF, 85 KB)
8032 Impact Drive Rod Outline Drawing(PDF, 95 KB)
8032 Drive Rod Outline Drawing(PDF, 91 KB)
8030 Drive Rod Outline Drawing(PDF, 85 KB)
Lock Stud Adjustment Instructions(PDF, 149 KB)
