Euro Handles

Caldwell’s MAGNUM® Euro Style Handle for Euro-Groove and Surface Mount MPL Systems

Available Standard 4” or Extended 8” with increased leverage design

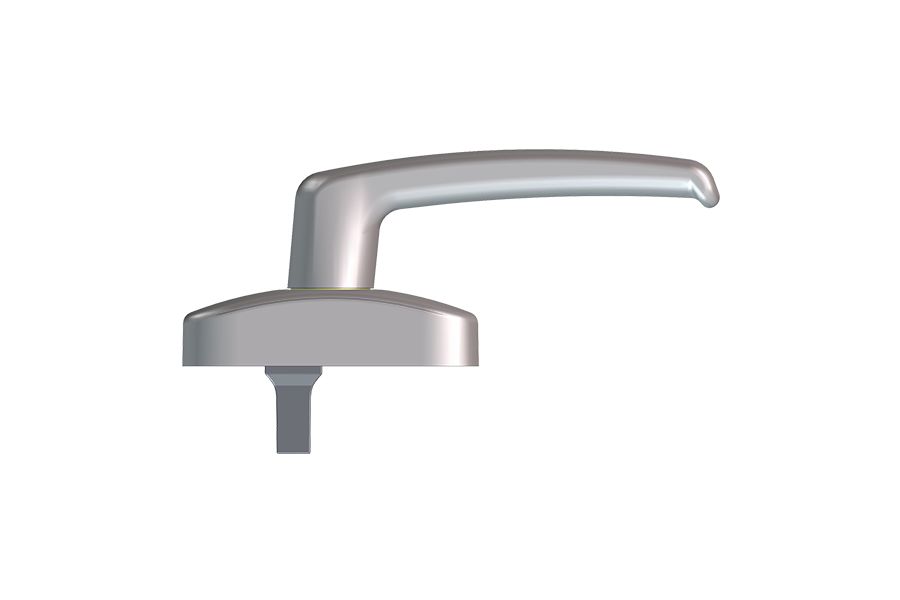

Available Fork (1248) or Post (1249) mounting
Available Standard, Offset or with a Pole Ring

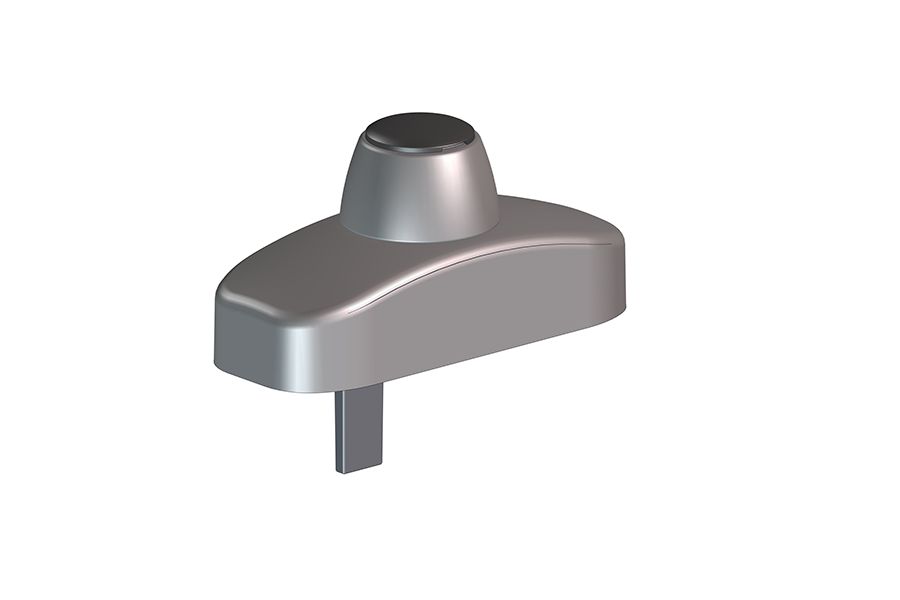

Maintenance Euro Handle also available Fork (1250) or Post (1251)

Product features

High Tensile Zamac Castings
Small Foot Print (3.25″ by 1.35″)
Oversize Gear for Increased Lock Travel (.80″)
Large Drive Platform to Prevent Deflection
Acetal Bearings for Smooth Operation
Finishes Available: White Powder Coat & Black Powder Coat
Satin Nickel & Satin Chrome also available for many
Special Order Powder Coat Finishes Available

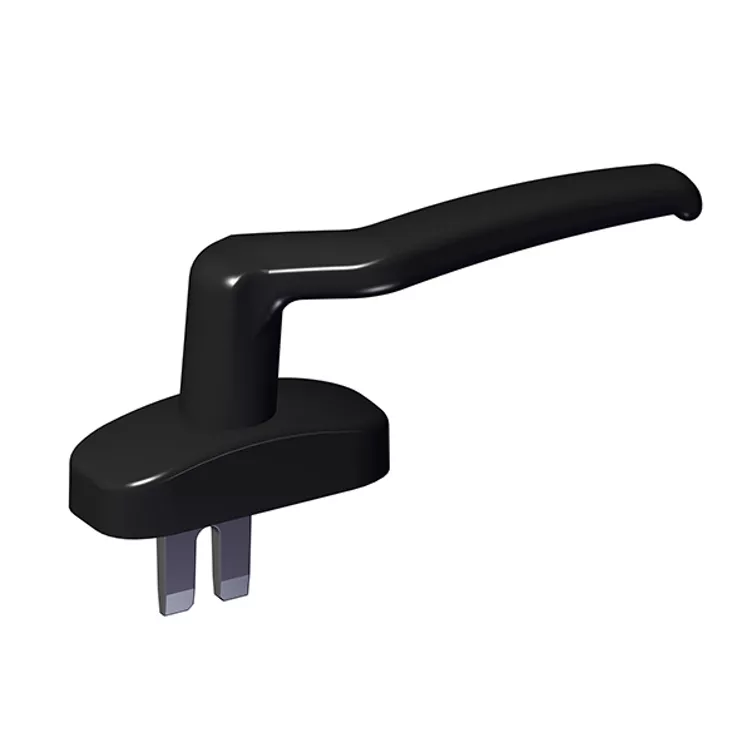

Image: 1248O Offset Euro Handle 4" Fork — 1248O Offset Euro Handle 4" Fork

WINDOW TYPE	Euro Groove, Surface Mount
HANDLE TYPE	90° Rotating
HANDLE STYLE	Straight
HANDLE DRIVE TYPE	Fork or Post
MOUNT	Blind
RESISTANCE/FRICTION	Standard, Loose
MOUNT LOCATION	Vent
STACK HEIGHT	.625"
CUSTOM POWDER COAT COLOR	Available
STANDARD COLORS	All: Black, White Some: Satin Chrome, Satin Nickle
BOX QUANTITY	50 pcs

Related products

Wrench Tool

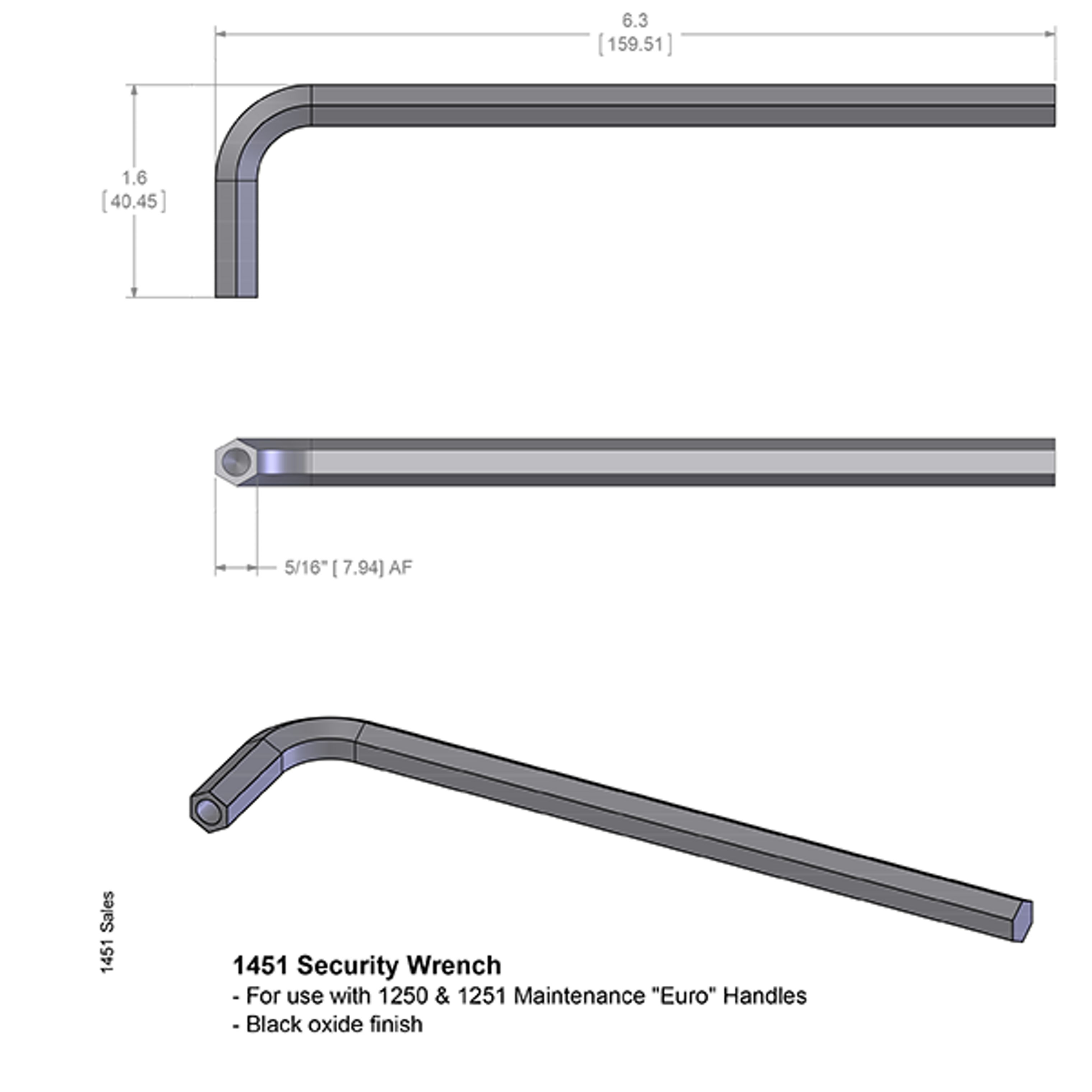

1451 Wrench Tool for Maintenance Euro Handles
