    OMNI DRIVE™ Outswing Operator

    The OMNI DRIVE™ Operator Kit is designed for outswing applications with Euro groove and surface-mounted MPL systems. Ideal for installations requiring reliable and efficient operation, this all-in-one kit provides the essential components needed for a complete setup, including the drive mechanism, lock bars, and tracks.
    Product features

    • Drives MPL and vent in a single, smooth operation
    • Flexible system design allows for customization to fit a variety of window profiles
      • Designed for a minimum vent size of 22” (minimum size depends on profile)
      • Single drive supports awning vents up to 60” wide
      • Flexible handle mounting locations to suit different applications
      • Corner Transmission available
    • ADA Capable (application, design and specification criteria dependent)
    • No interference with screens
      • Handle stays on the frame to allow window operation with screens in place
      • Accommodates screen frames up to 0.5” deep
    • Provides approximately 4” clear vent opening
    • Designed to fit most current systems with a 0.625″ (16 mm) stack height
      • Compatible with both surface-mounted and Euro-groove systems
    • EZ-Drive Handle:
      • Single handle control provides complete vent operation
      • Available in horizontal or vertical handle movement options to meet multiple specifications

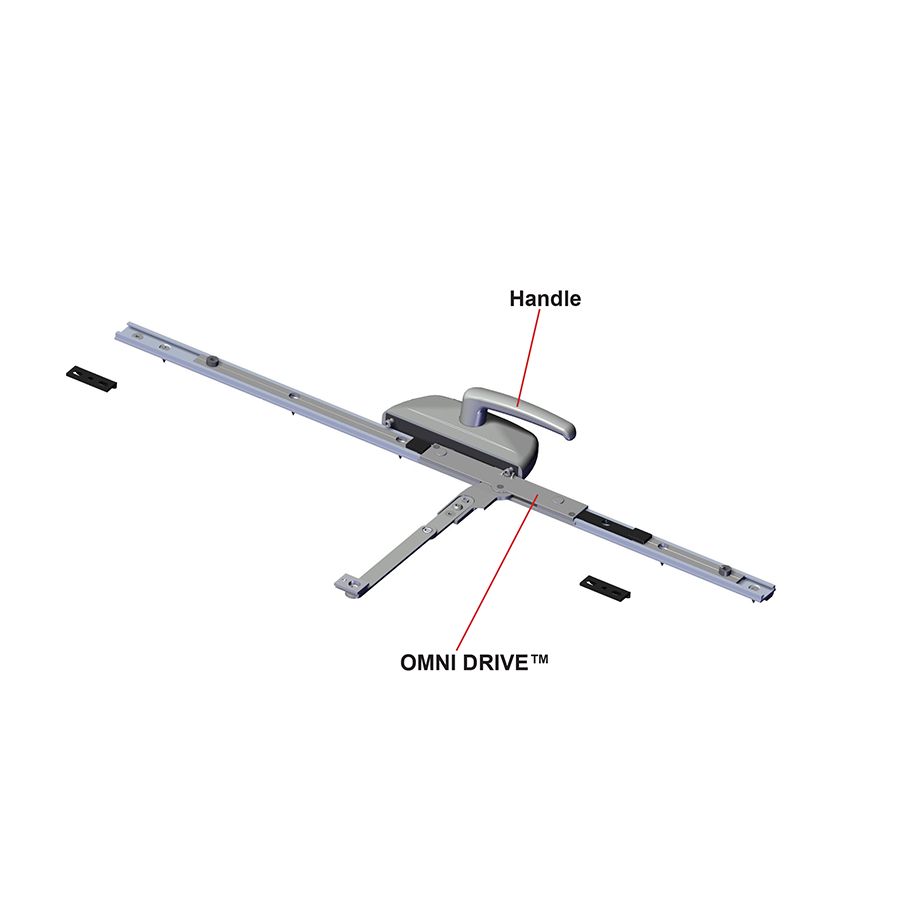

    OMNI DRIVE™ Outswing Operator

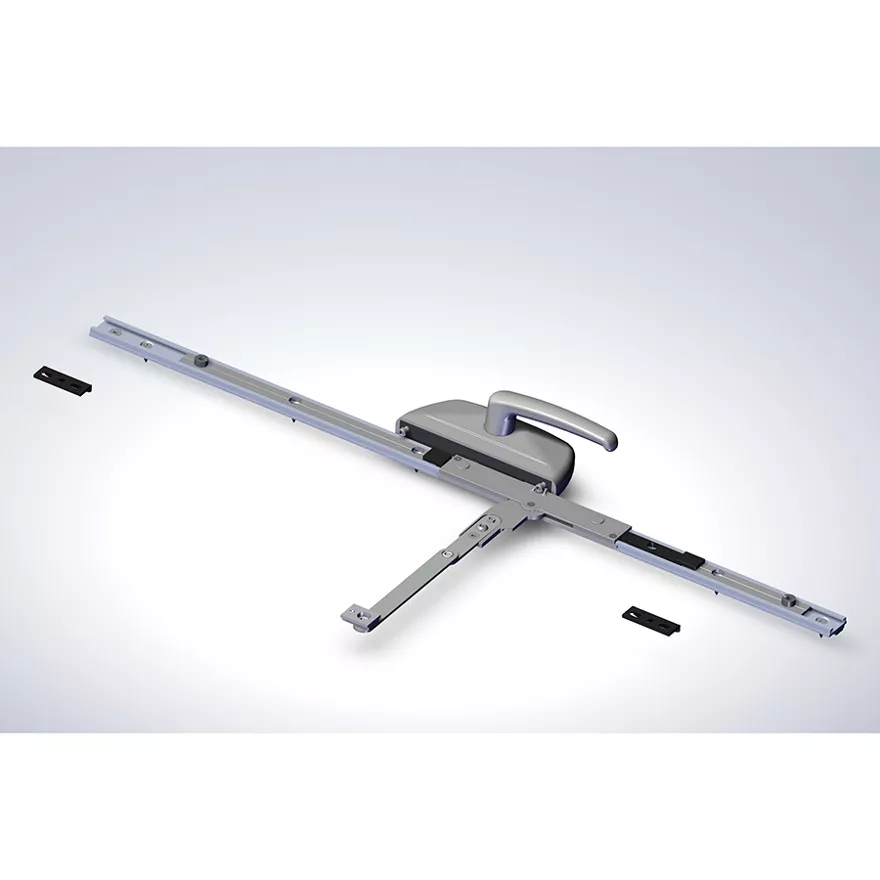

    OMNI DRIVE™ Operator Kit

    OMNI DRIVE™ Outswing Operator

    1 of 2

    WINDOW TYPE Euro groove, surface mount
    HANDLE TYPE 180° Rotating
    HANDLE STYLE Available in horizontal or vertical travel
    Available in extended or standard
    HANDLE DRIVE TYPE Post
    MOUNT Blind
    RESISTANCE/FRICTION Loose
    MOUNT LOCATION Frame
    MATERIAL TYPE Zinc, aluminum, stainless steel
    FOR USE WITH A CORNER DRIVE Yes
    ADA CAPABILITY Yes
    NYC-DOH Application dependent
    CLEAR WINDOW OPENING Approximately 4"
    STANDARD SYSTEM LENGTH 18", 24", 30", 40", 48"
    WINDOW DIMENSION 22” to 87” tall and 21” to 60” wide*
    STATUS Available

    *Window dimensions are profile design, application and 4-bar hinge dependent.

    • OMNI DRIVE™ Operational Procedure(PDF, 176 KB)
    • Lock Stud Adjustment Instructions(PDF, 129 KB)
    • Corner Drive Installation Instructions, EG(PDF, 877 KB)
    • Corner Drive Installation Instructions, SM, Awning(PDF, 920 KB)
    • OMNI DRIVE™ Euro-groove Installation Instructions(PDF, 1 MB)
    • OMNI DRIVE™ Surface Mount Installation Instructions(PDF, 3 MB)
    • Corner Drive(PDF, 466 KB)
    • OMNI DRIVE™ Surface Mount Installation Instructions(PDF, 441 KB)
    • ASSAABLOY_OMNI DRIVE_One Pager(PDF, 386 KB)
