Sideload Carriers & Brackets | ASSA ABLOY Fenestration

A variety of Carriers & Brackets to provide sideload take-out solutions for ULTRA-LIFT^®, ALUMA-TILT^®, and INSUL-TILT balances.

Sideload Carriers & Brackets

Carriers

SASH WEIGHT CAPACITY (MIN) 10
SASH WEIGHT CAPACITY (MAX) 160
SINGLE OR TANDEM APPLICATION Single & Tandem Available

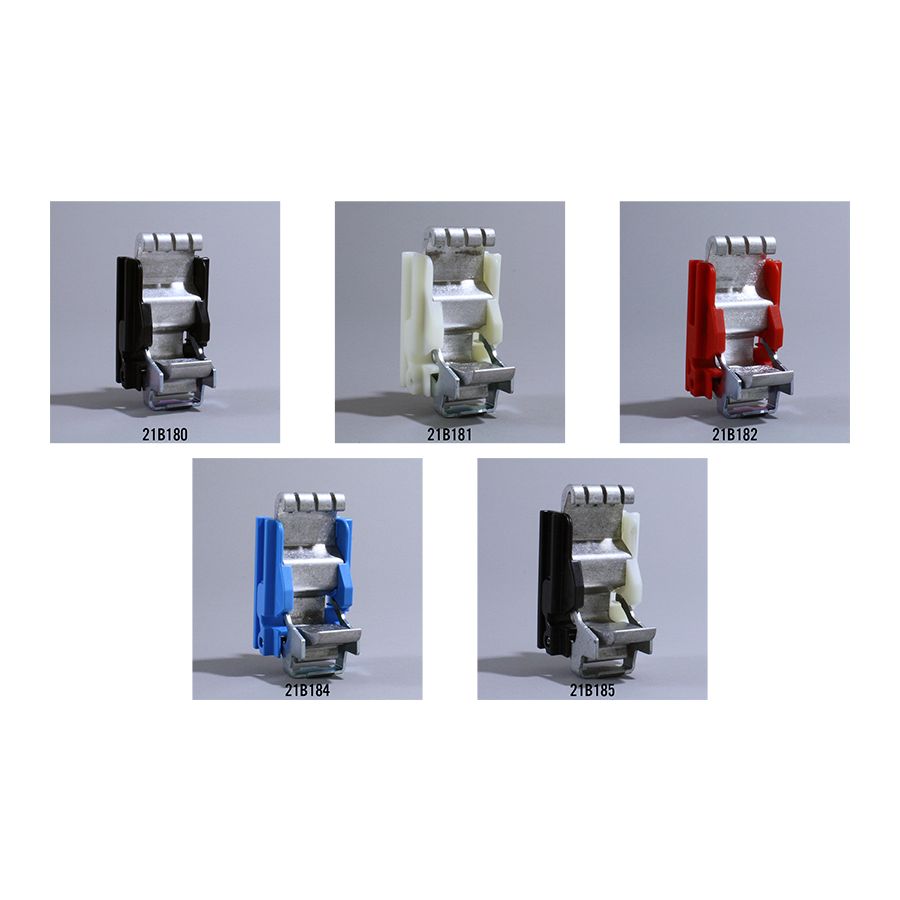

Sideload Carriers:
21B180, 21B181, 21B182, 21B184, 21B185
Sideload Brackets:
21B164, 21B165, 21B166, 21B171, 21B172, 21B174, 21B175, 21B176, 21B177, 21B179
See Downloads for details

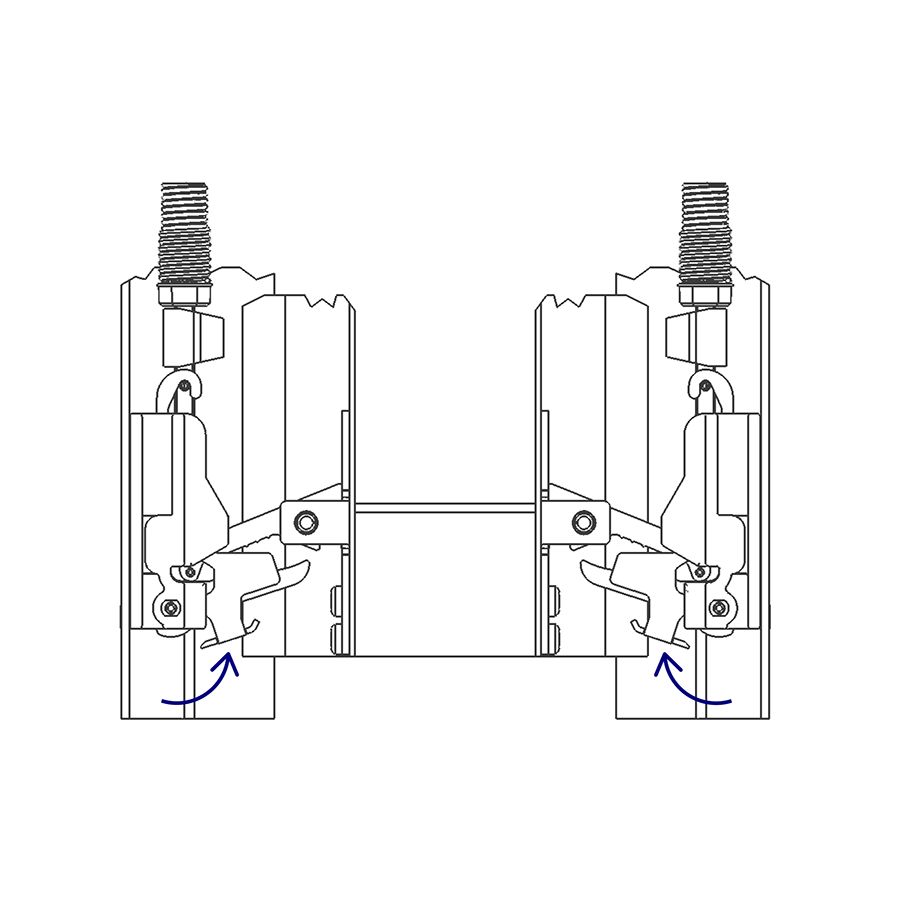

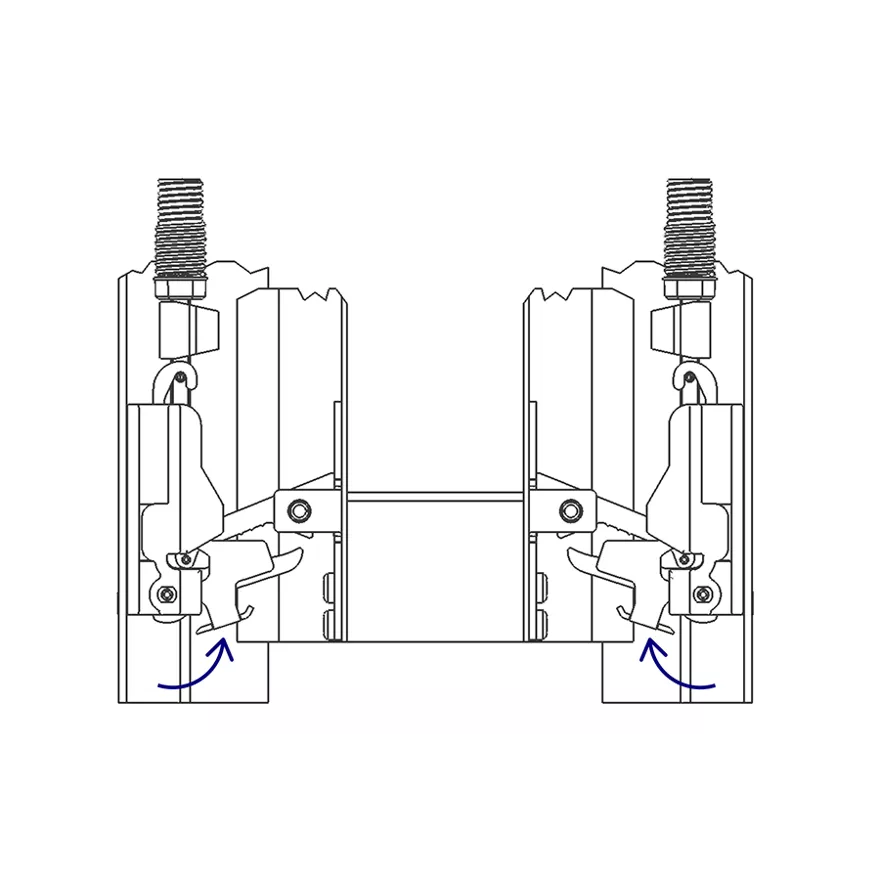

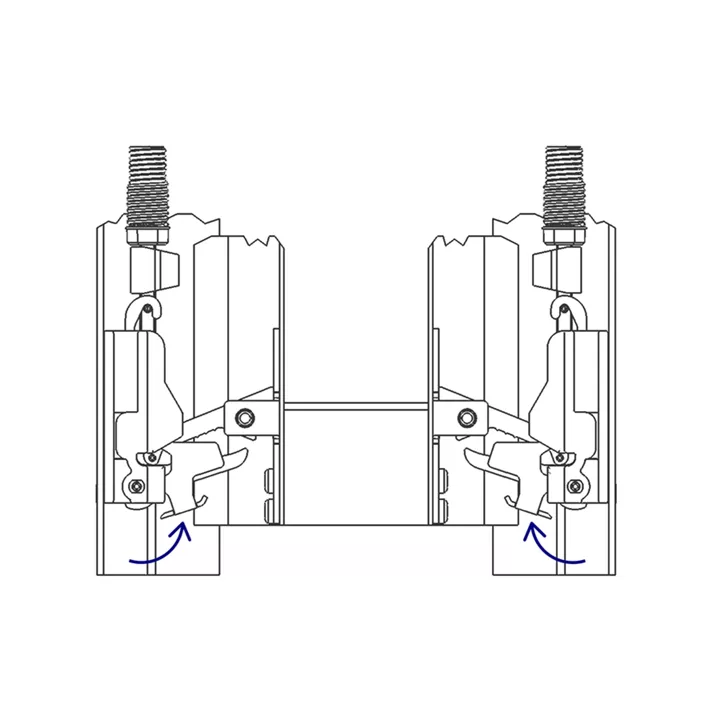

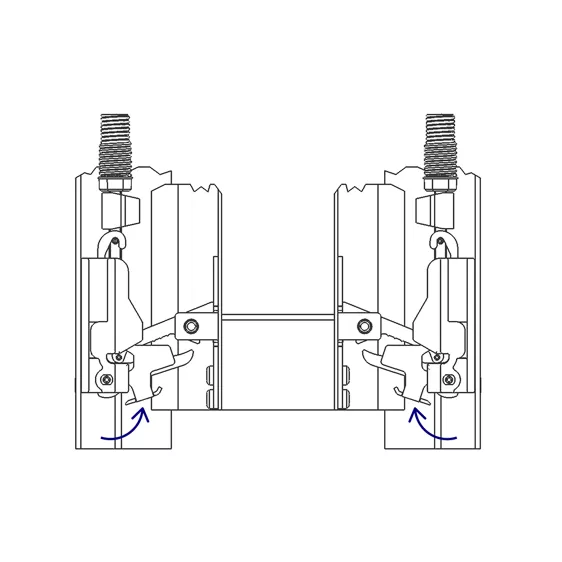

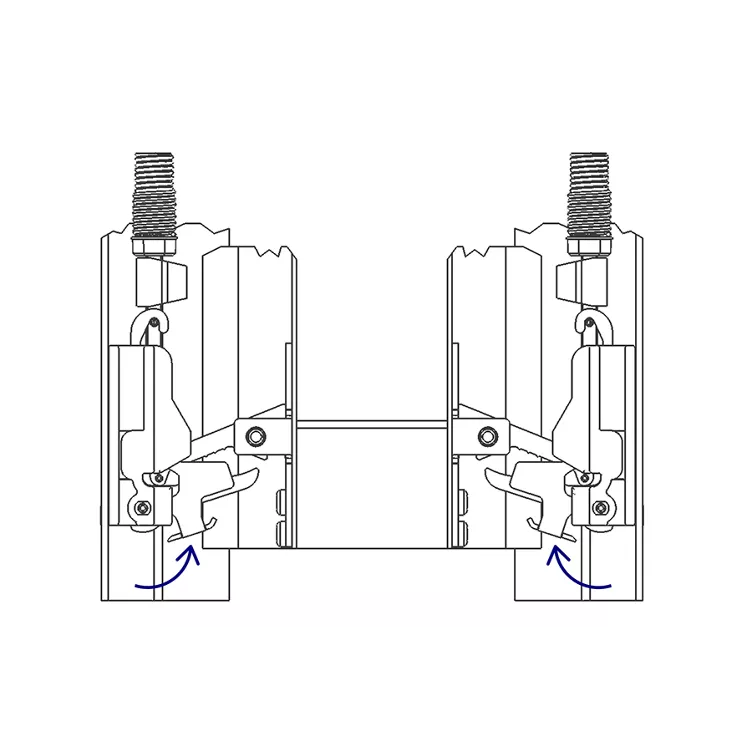

ULTRA-LIFT® Installation and Removal Procedures for the Take-Out System(PDF, 728 KB)
Take-Out System Design File Drawings for 21B181 Carrier when used with Brackets 21B166, 21B167, 21B174, 21B178, 21B179(PDF, 343 KB)
Take-Out System Design File Drawings for 21B181 Carrier when used with Brackets 21B165, 21B168, 21B172, 21B175, 21B176(PDF, 343 KB)
Sideload Bracket Outline Drawings(PDF, 3 MB)
Sideload Carrier Outline Drawings(PDF, 1 MB)

Related products

ULTRA-LIFT^®
ULTRA-LIFT^® EXTREME

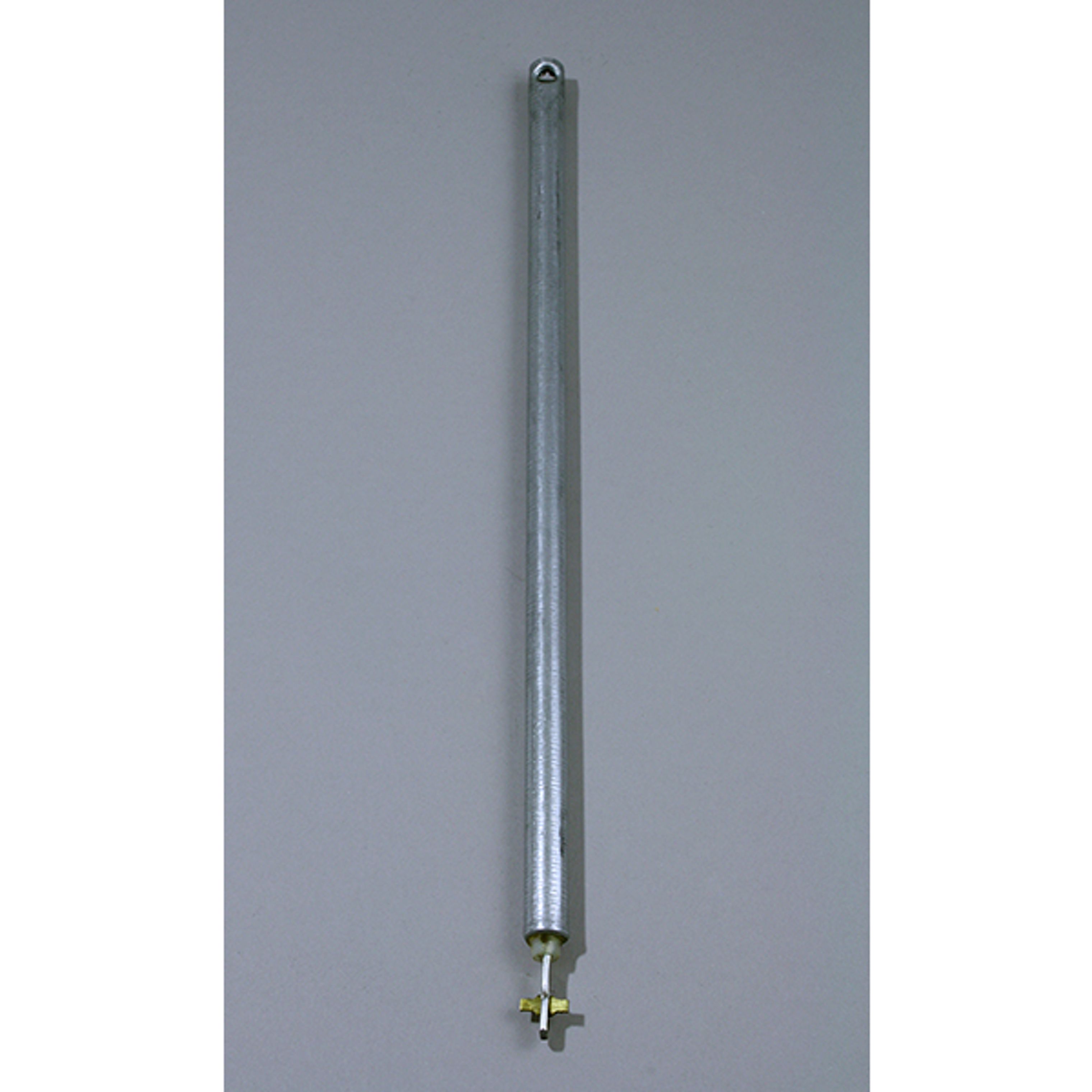

3/8” Spirals
