QUICKTILT® 562
Caldwell’s assembled Constant Force Balance System QUICKTILT® 562: Comes pre-assembled with a two piece new construction cover.
QUICKTILT® 562 succeeds AAMA Class 2 and has Positive Lock or Friction Lock options with a weight capacity of 4-61 lbs.
Also available for Egress solutions: 4-42 lbs.
Product Features
- Pre-assembled to reduce window assembly time
- Integrated coil nest & cover to provide new construction tolerance while minimizing contamination & debris
- Excellent Structural Performance: robust drop-in cam accepts a tie-in pivot bar
- Drop-In balances with lock carriers
- Positive Lock Carrier Provides Constant Locking Ability Through A Complete Range of Balance Capacities
- Friction Lock Carrier Non-Marring Locking Pad Locking Force Increases as Sash Weight Increases
- Optional Friction Adjusters available for Easy Field Adjustments
- Optional Tamper Lock to limit unintended sash removal

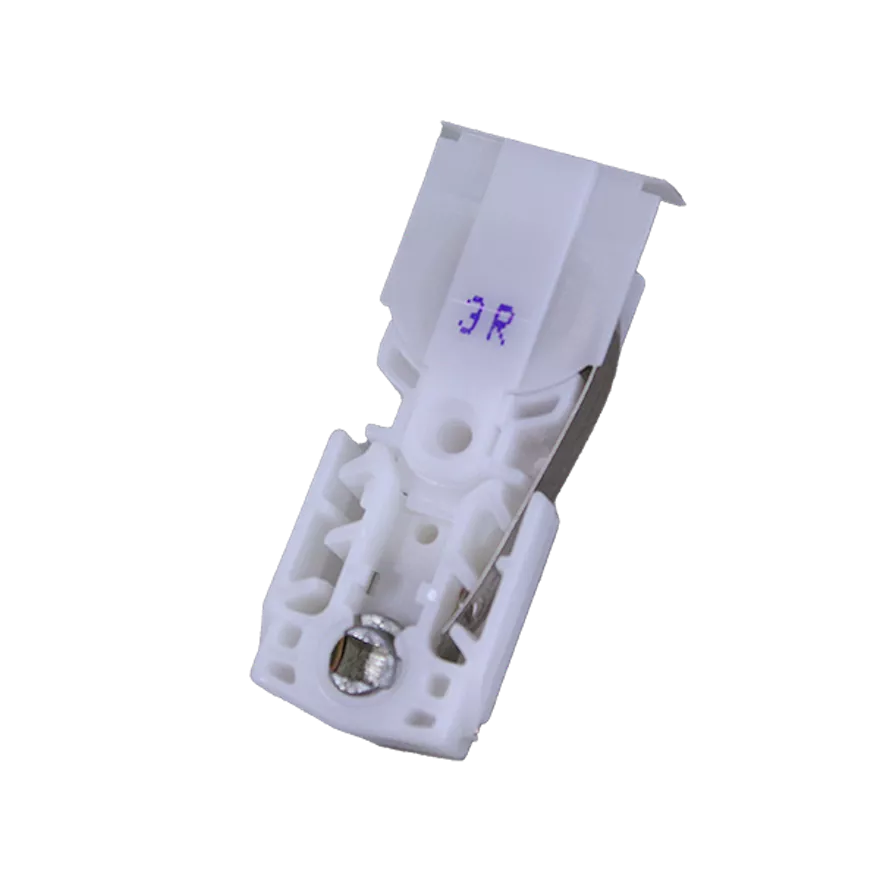

QUICKTILT® 562 Positive Lock
QUICKTILT® 562 Positive Lock

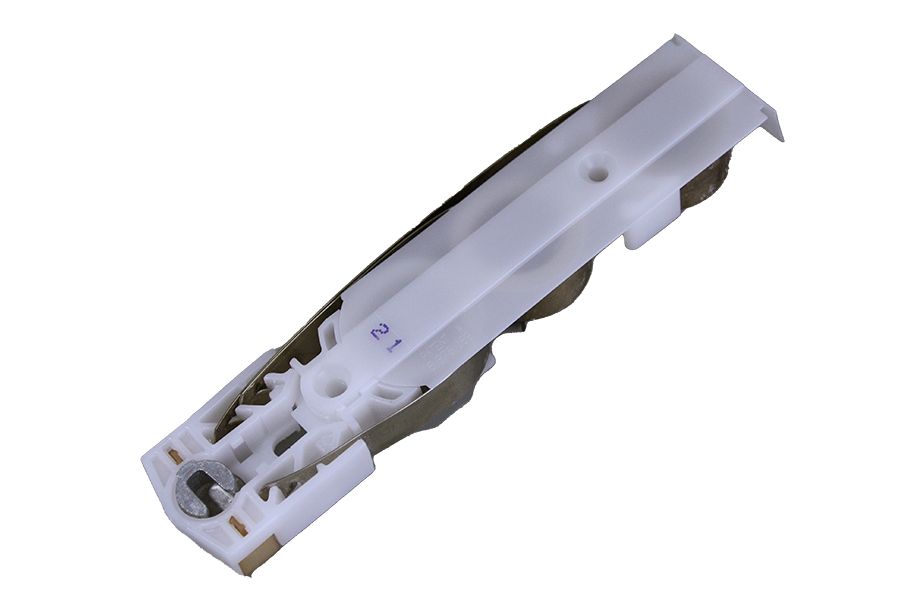

QUICKTILT® 562 Friction Lock

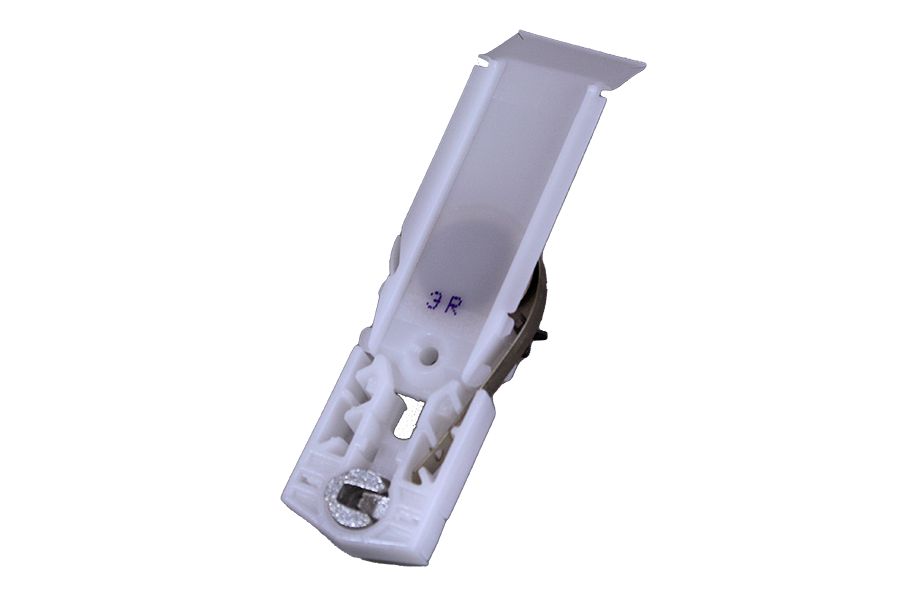

QUICKTILT® 562 Egress

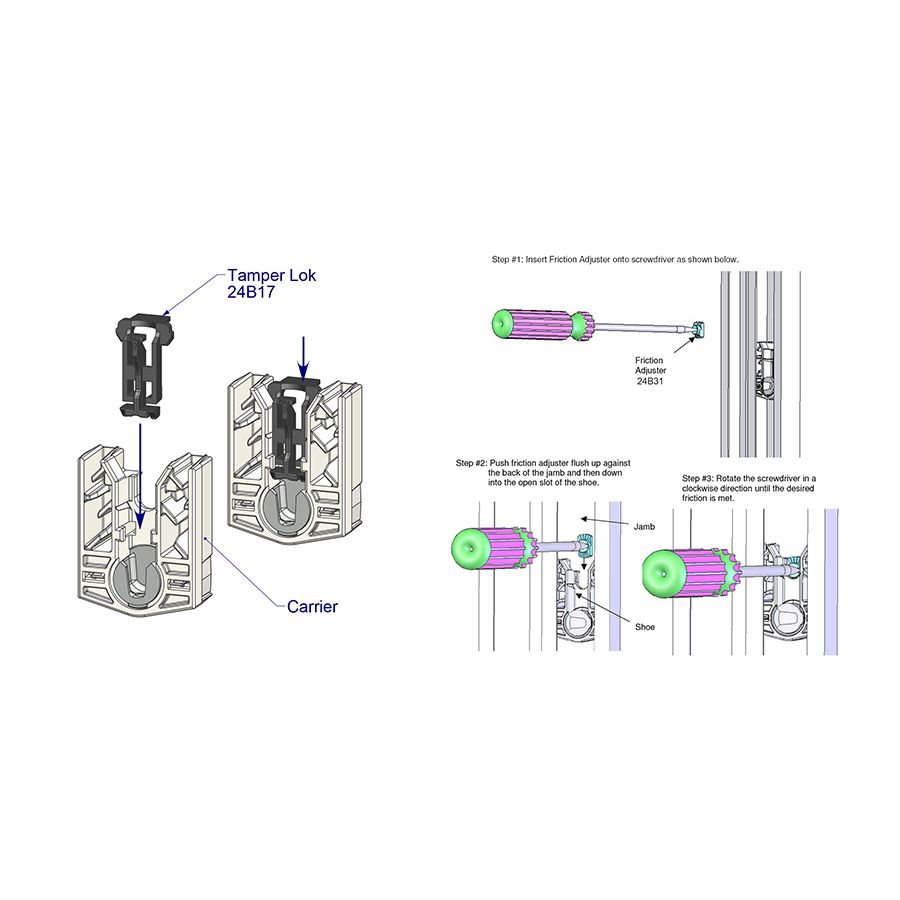

Optional Tamper Lock & Friction Adjuster
TRAVEL (EXTENSION) 32.50 Inches TRAVEL (RETRACTION) 2.50 Inches SASH WEIGHT CAPACITY 4 lbs - 61 lbs MOVING OR FIXED COIL Fixed SPRING POSITION Interior or Exterior TAMPERLOCK Optional PIVOT BAR HEAD Friction: Round Positive: Mini T POCKET SIZE 9/16 X 1 1/4 (.562 X1.292) BOX QUANTITY 3lb-10lb Singles: 100/Box; 11lb-20lb Tandems: 100/Box; 21lb - 27lb Triples: 40/Box Single Spring QUICKTILT® configurations are available left hand and right hand orientation.
Left Hand – Spring exits the case on the left hand side when holding the case with cam facing you.
Right Hand- Spring exits the case on the right hand side when holding the case with cam facing you.Available Egress:
Created with a 3/8” coil spring. Weight range: 4-43lbs Pivot Bar Head: Round
Box Qty: Egress: 3lb-7lb Singles: 100/Box; 8lb-14lb Tandems: 100/Box; 15lb – 21lb Triples: 40/Box
