    RENNA™ Side Adjust Series

    ASSA ABLOY’s RENNA™ series offers the latest innovation in high quality sliding door rollers. Featuring Interlock USA’s patented interlocking technology, RENNA™ rollers are AAMA certified to effortlessly move the heaviest door panels without collapse or separation.

    The RENNA™ 450 Side Adjust series rollers, adjustable at full load, are offered in various configurations to suit your sliding door requirements. Extruded, turned composite wheels provide quiet operation and reduced track wear.

    Features

    • Patented interlocking technology prevents collapse and separation at maximum load
    • Precision wheel bearings with rubber end seals
    • Industry leading carriage wall thickness
    • Offered with extruded, turned composite wheels for smoother operation
    • Adjustment screw accessible at both sides
    • Certified to the requirements of AAMA 906-21
    • Weight capacity 450 lbs per pair at 10000 cycles per AAMA 906-21
    • Available for use on vinyl, wood and aluminum
    Contact us
    4fffd-renna225sastandardmounting

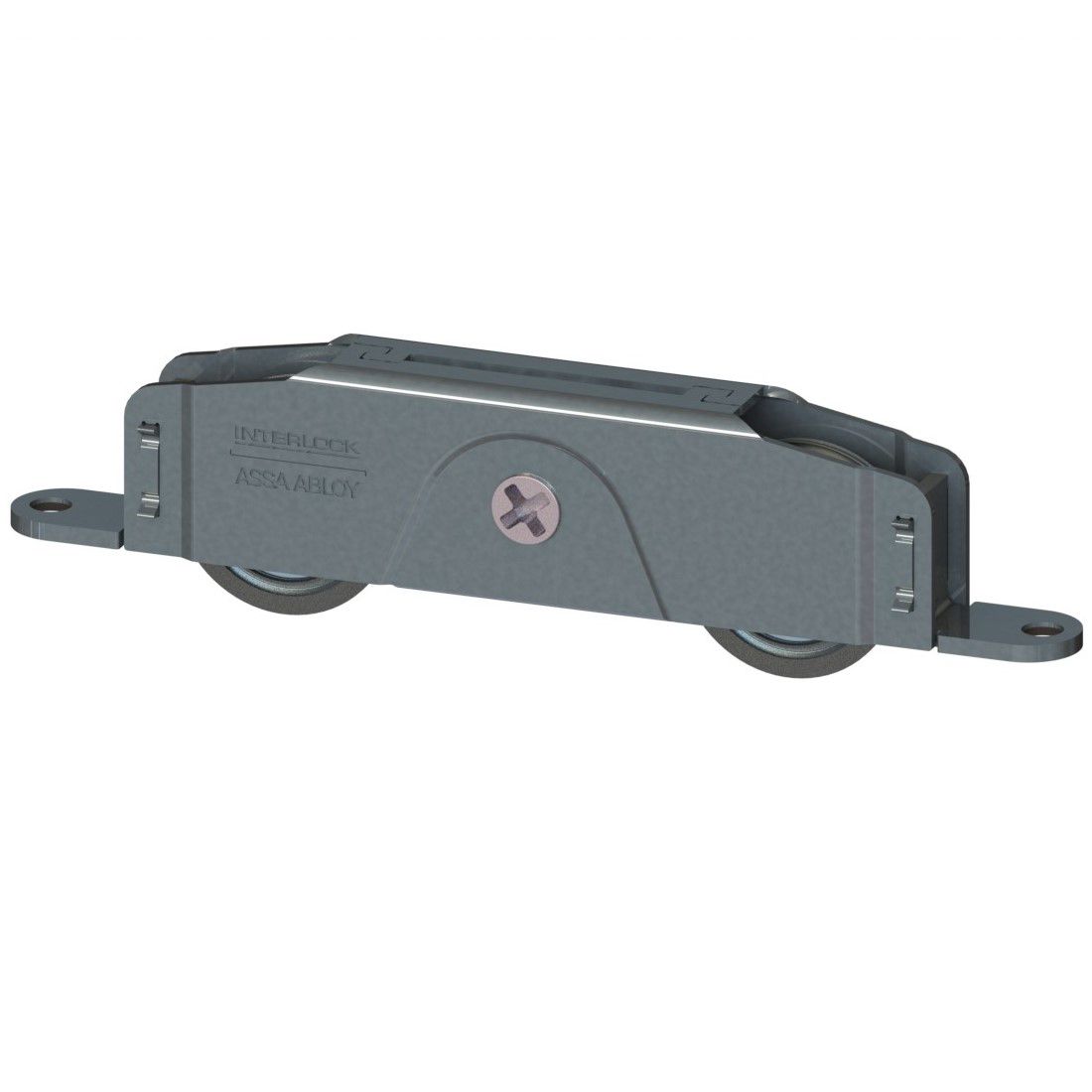

    RENNA™ 450 Standard Mounting Tabs

    4fffd-renna225sastandardmounting

    1 of 4

    Roller diameter: 1.25”
    Maximum door weight: 450 lbs*
    Adjustment range: Standard, Inverted & Snap In: 0.36” Extended: 0.26”

    *Capable of supporting over 625 lbs with reduced operating cycles

    Standard

    Part Code Case & Carrier Material Wheel Material Adjustment Range Box Quantity
    PR05-6000 Stainless Stainless 0.36" 40
    PR05-6005 Stainless Plastic 0.36" 40
    PR05-6100 Steel Steel 0.36" 40
    PR05-6105 Steel Plastic 0.36" 40
    PR05-6106 Steel Composite 0.36" 40
    PR05-6107 Stainless Composite 0.36" 40

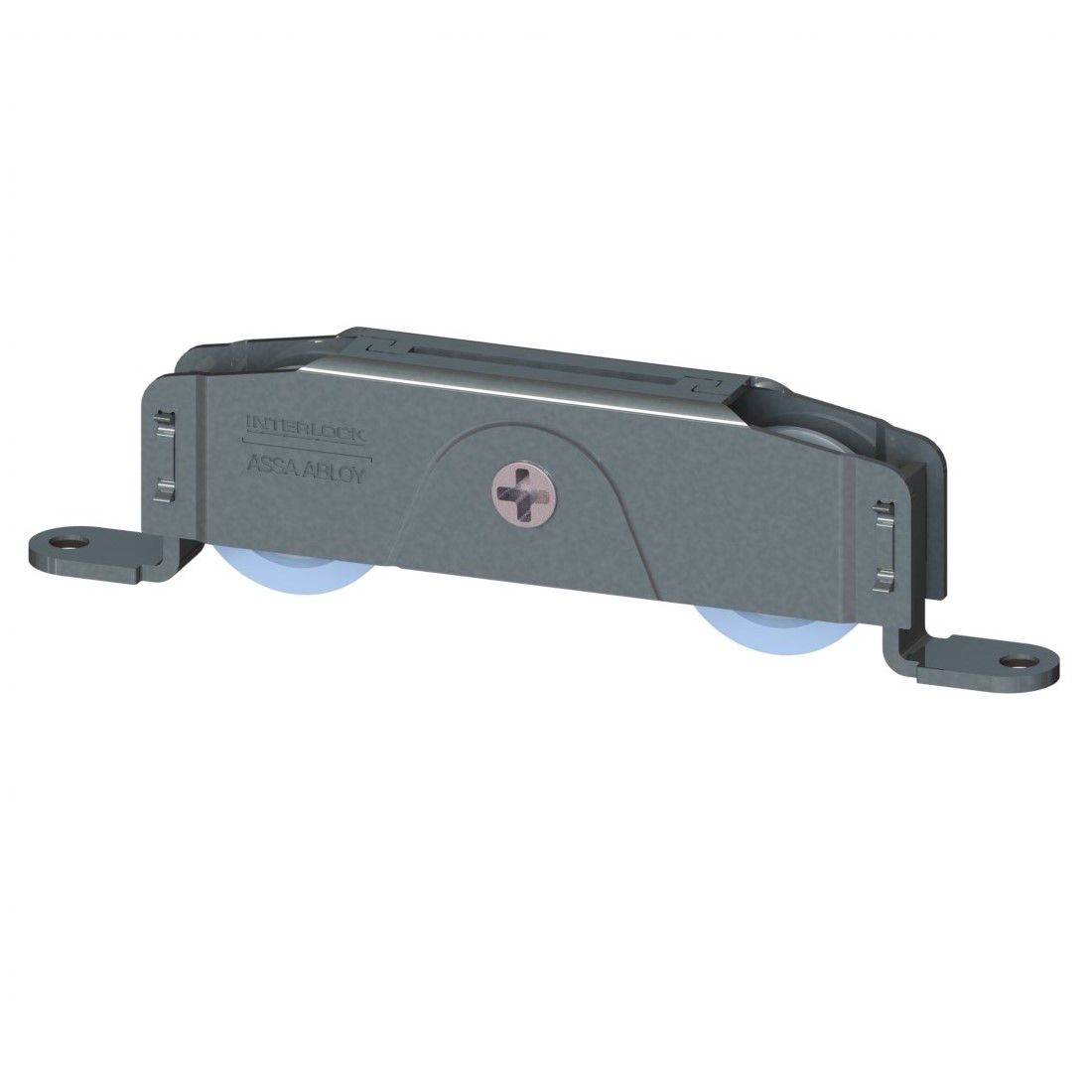

    Extended

    Part Code Case & Carrier Material Wheel Material Adjustment Range Box Quantity
    PR05-6120 Steel Steel 0.26" 40
    PR05-6122 Stainless Stainless 0.26" 40
    PR05-6125 Steel Plastic 0.26" 40
    PR05-6126 Steel Composite 0.26" 40

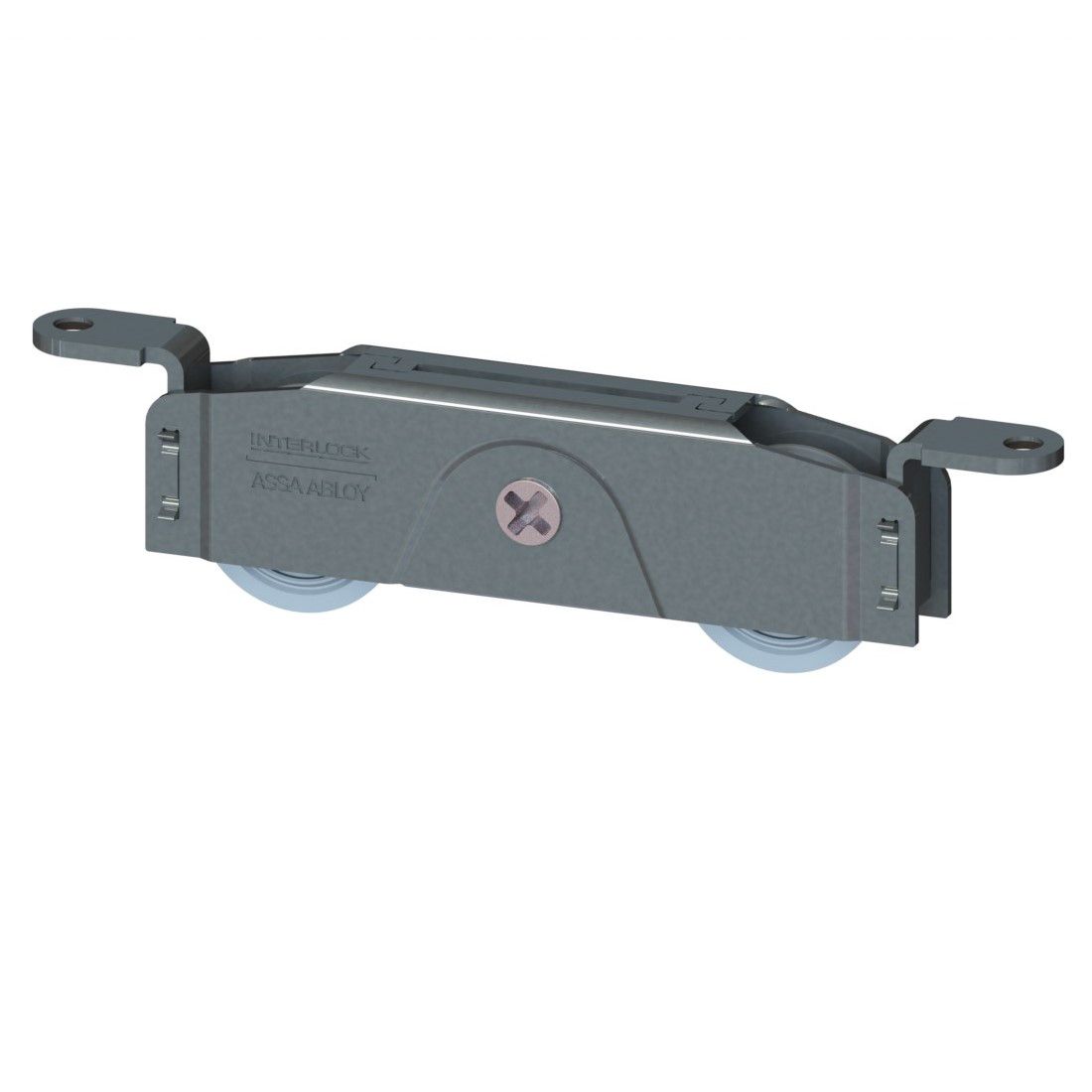

    Inverted

    Part Code Case & Carrier Material Wheel Material Adjustment Range Box Quantity
    PR05-6007 Stainless Plastic 0.36" 40
    PR05-6008 Stainless Stainless 0.36" 40
    PR05-6108 Steel Steel 0.36" 40

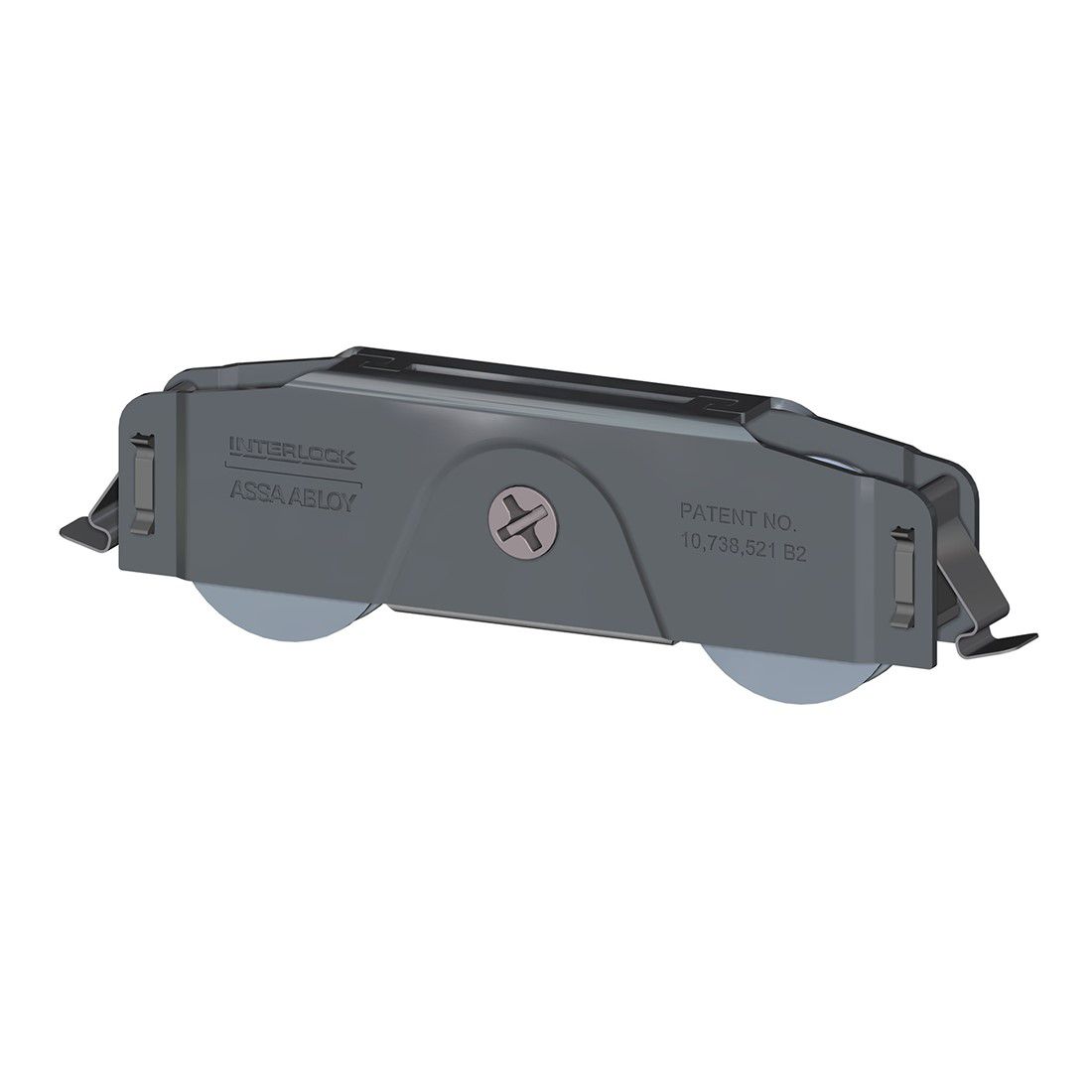

    Snap-In

    Part Code Case & Carrier Material Wheel Material Adjustment Range Box Quantity
    PR05-0100 Stainless Stainless 0.36" 40
    PR05-0010 Steel Steel 0.36" 40
    PR05-0116 Steel Composite 0.36" 40
    • RENNA™ 225 Side Adjust Series Roller(PDF, 2 MB)
    • RENNA™ 450 Side Adjust Series Roller(PDF, 1 MB)
