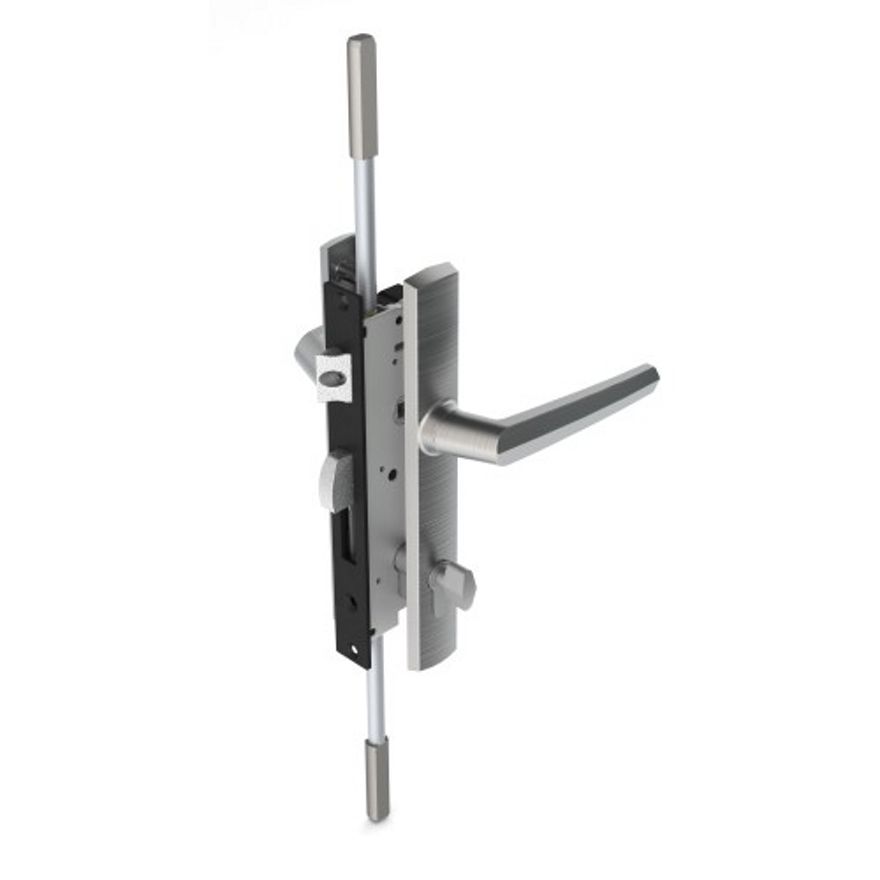

Lever Compression Lock

With the perfect balance of utility, strength, and sophistication, the INTERLOCK^® lever compression lock is the ideal multi-point locking solution for aluminum and vinyl swing door applications. The handle-activated locking mechanism can be enhanced with shoot bolts for better security and weather performance.

Features

• Upward motion of the handle activates deadbolt, shoot bolts and remote mechanisms
• Unique deadbolt design increases seal compression upon activation
• Generates superior air and water performance
• Up to four locking points
• Handing easily changed with removable latch bolt
• Multiple handle styles available

Specifications

• 30 mm (1.2”), 35 mm (1.4") and 40 mm (1.6”) backset options
• 13 mm (1/2”), 16 mm (5/8”) and 24 mm (15/16”) deadbolt lengths

Materials and Finishes

• Lock and handles made from zinc alloy and are available in powdercoat and architectural finishes
• Latch and deadbolt made from zinc alloy and nickel plated
• Composite or stainless steel shoot bolt tips
