Concealed Drive

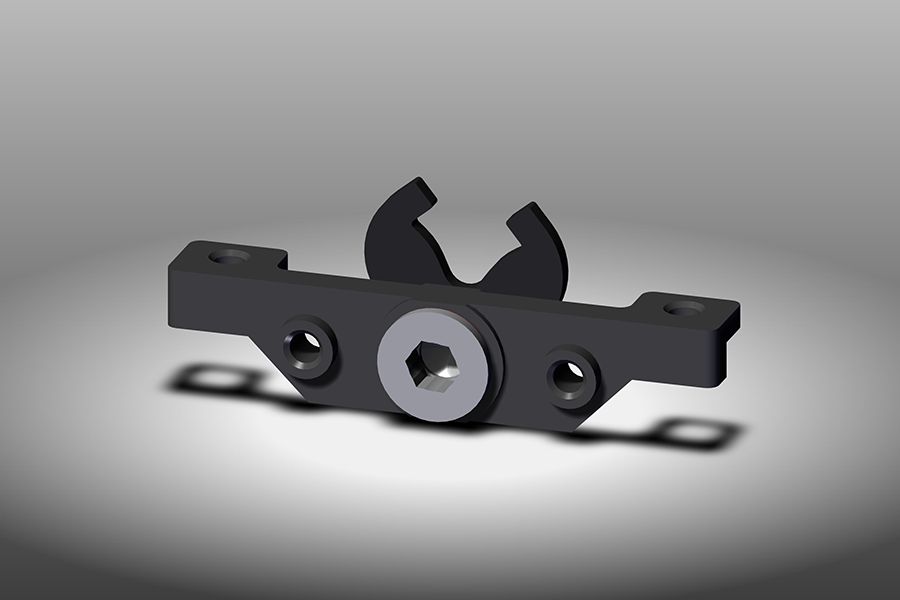

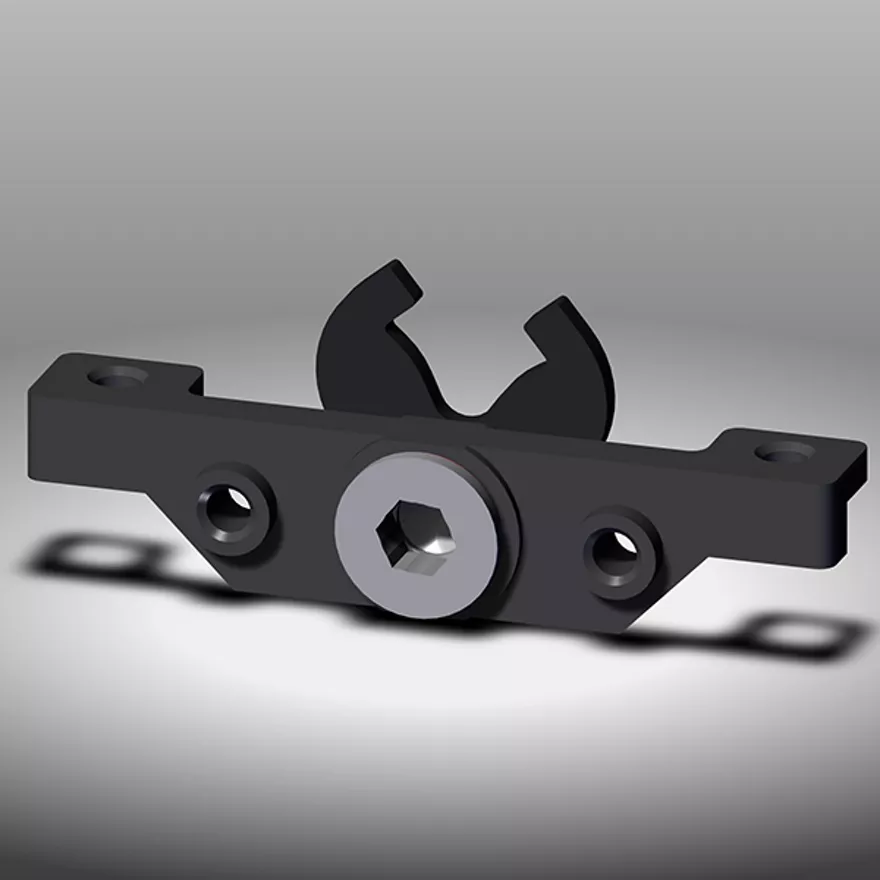

1480-0.865 Concealed Drive

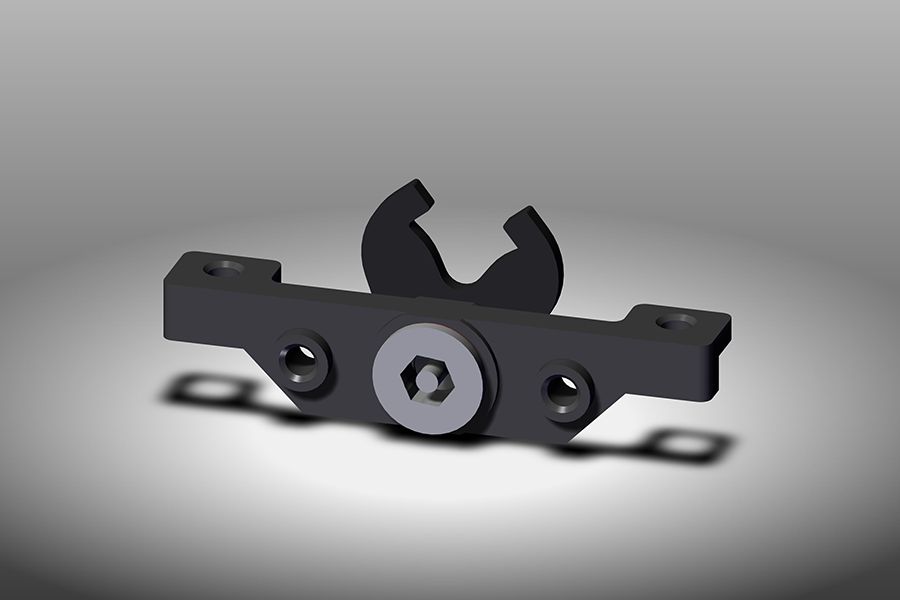

1480-02-S Concealed Drive

The fully concealed handle options. A “No External Handle” Maintenance Option for use with the 8301 Lock Bar Assemblies.

1480-0.865 Concealed Drive

WINDOW TYPE Euro Groove, Surface Mount
HANDLE TYPE Rotating
HANDLE STYLE Concealed
MOUNT Blind
RESISTANCE/FRICTION Standard
MOUNT LOCATION Vent
MATERIAL TYPE Zinc Die Cast
1480-0.865 Concealed Drive Outline Drawing(PDF, 272 KB)
1480-02-S Concealed Drive Outline Drawing(PDF, 284 KB)
