Offset Drive Plate

1179 Offset Drive Plate, 1545 Offset Drive Plate, 1617-x Offset Drive Plate, 1625 Offset Drive Plate

Offset Drive Plates used to connect Handles to Lock Bars

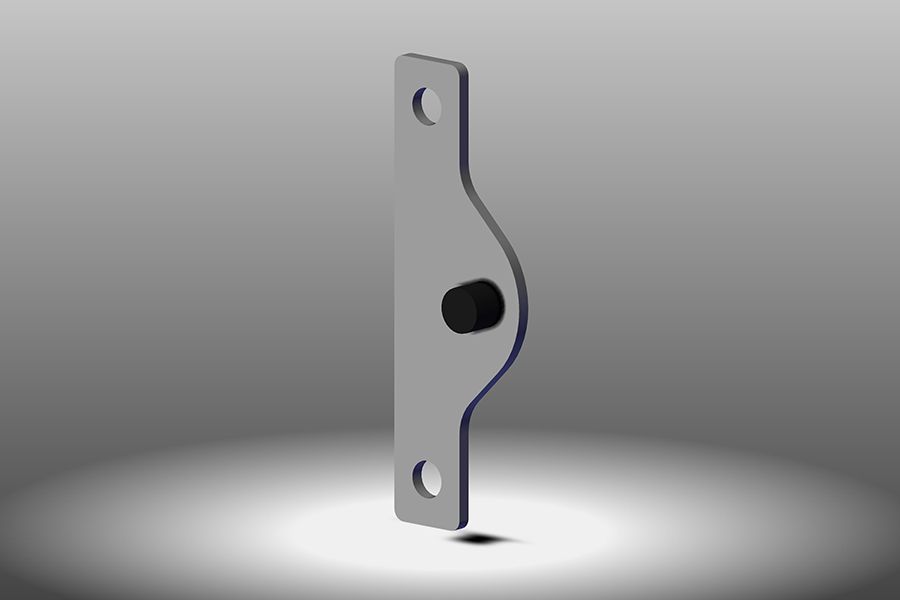

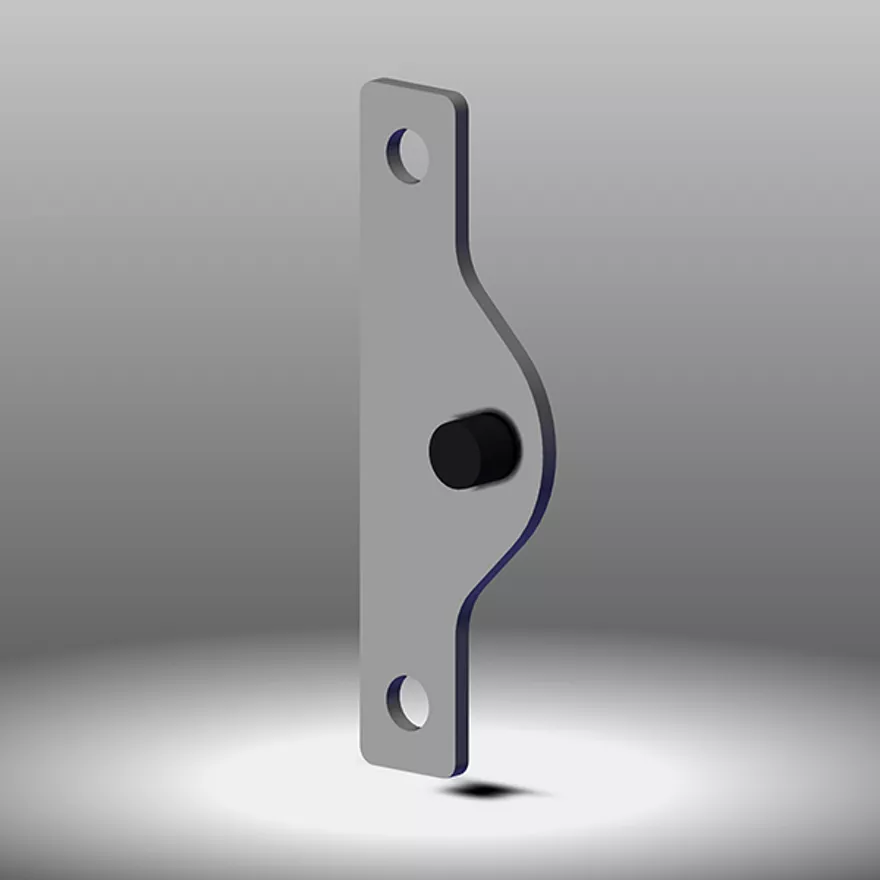

1179 Offset Drive Plate

WINDOW TYPE Surface Mount
MOUNT LOCATION Vent, Frame
MATERIAL TYPE Aluminium
Custom Sizes & Designs Available- Contact Caldwell for Details
1179 Offset Drive Plate Outline Drawing(PDF, 154 KB)
1617-x Offset Drive Plate Outline Drawing(PDF, 149 KB)

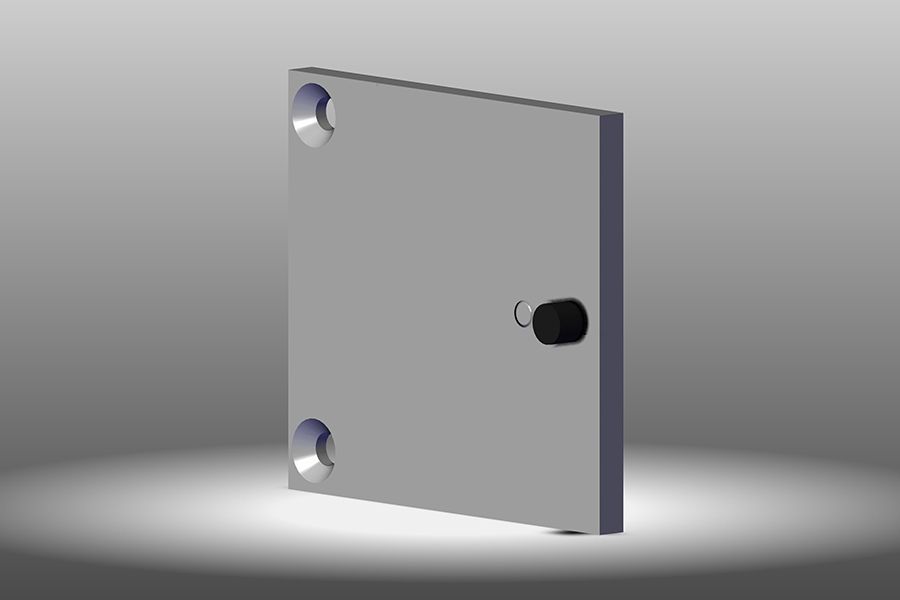

1625 Offset Drive Plate Outline Drawing(PDF, 225 KB)

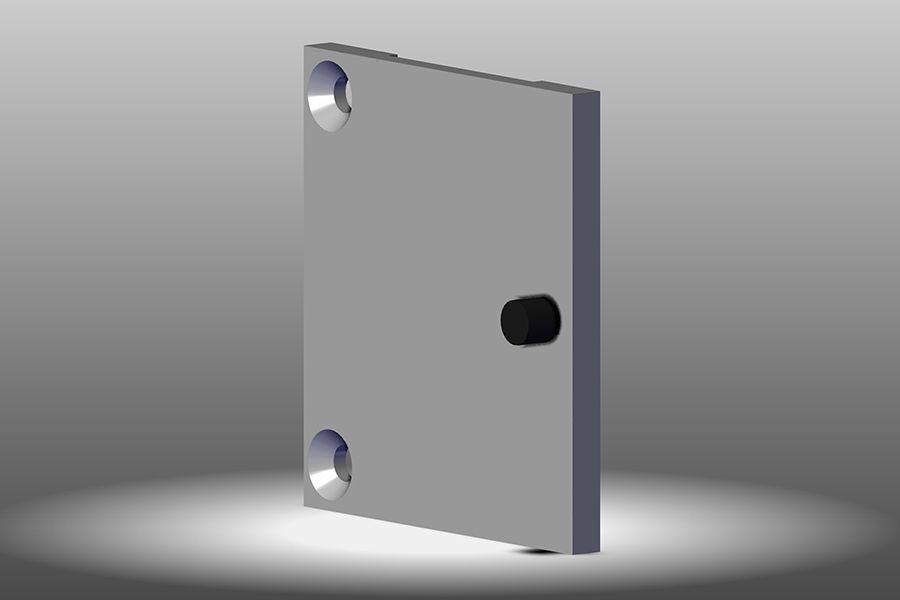

1545 Offset Drive Plate Outline Drawing(PDF, 205 KB)
