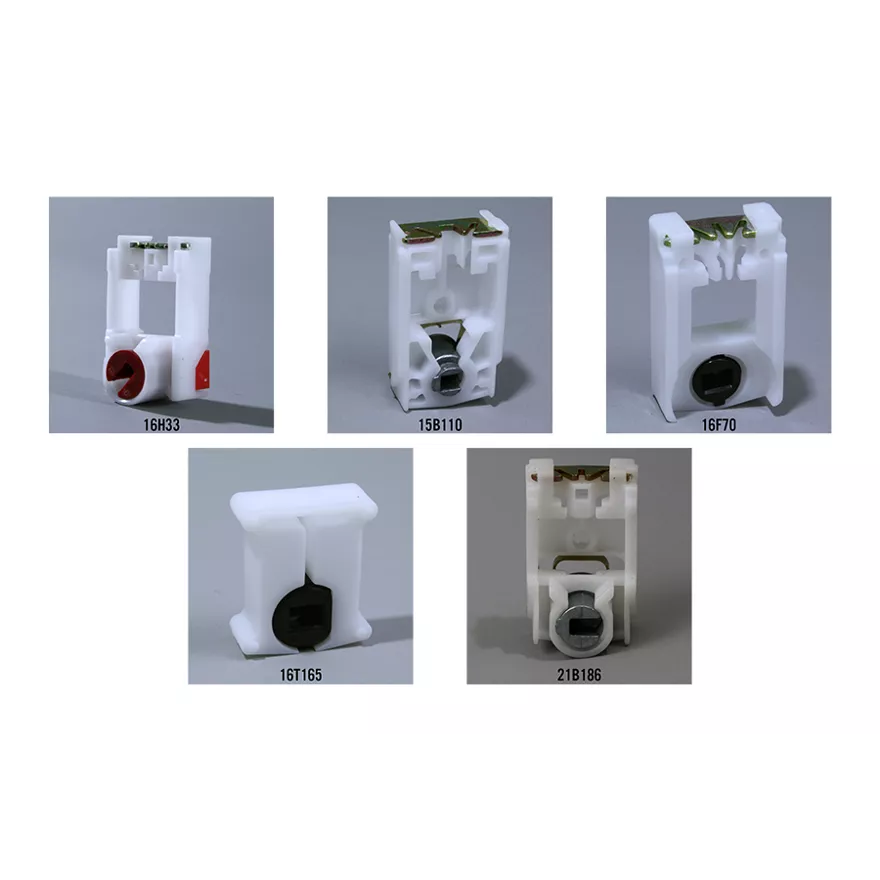

Tilt Carriers

Caldwell offers a wide range of Tilt Carriers with solutions for all pocket sizes.

Many options available including torque plates, friction or positive lock, single/tandem or both, and more!

Tilt Carriers

Part Number	Window Type	Pocket Size	Single or Tandem	Cam Color (plastic)	Note	Pivot Bar Head
15B100	Tilt	9/16 X 1 1/4 (.562 X 1.292)	Both			Mini T
15B110	Tilt	5/8 X 1 1/4 (.625 X 1.292)	Both		Torque Plate	L + Mini T
15B111	Tilt	9/16 X 1 1/4 (.562 X1.292)	Both		Torque Plate	L + Mini T
16F65	Tilt	9/16 X 1 1/4 (.562 X 1.292)	Both	Blue	Torque Plate	U
16F70	Tilt	5/8 X 1 1/4 (.625 X 1.292)	Both	Black	Torque Plate	U
16G21	Tilt	3/8 x 1 (.375 x 1.0)	Single	White		16T135
16H33	Tilt	5/8 X 1 287/1000 (.625 X 1.287)	Single	Red	Torque Plate for UL
16H65	Tilt	5/8 X 1 1/4 (.625 X 1.292)	Both	Navy	Torque Plate	U
16H70	Tilt	5/8 X 1 1/4 (.625 X 1.292)	Both	Black	Torque Plate	U
16H82	Tilt	5/8 X 1 1/4 (.625 X 1.292)	Both	Green	Torque Plate	U
16H98	Tilt	13/16 x 1 1/4 (.812 x 1.292)	Both	Black	Torque Plate
16L05	Tilt	3/8 x 1 (.375 x 1.0)	Single	Red	Torque Plate	16T135
16T165	Tilt	9/16 X 1 1/4 (.562 X 1.292)	Single	Black		16T520
16T225	Tilt	9/16 X 1 (.562 X 1)		White	Torque Plate	U
16T45	Tilt	9/16 X 1 1/4 (.562 X 1.292)	Single	Blue – Cyan	Torque Plate	U
16T85	Tilt	9/16 X 1 1/4 (.562 X 1.292)	Both	Tan	Torque Plate	U
16Y70	Tilt	5/8 X 1 1/4 (.625 X 1.292)	Both	White	Torque Plate	L + Mini T + U
16Y85	Tilt	9/16 X 1 1/4 (.562 X 1.292)	Both	White	Torque Plate	L + Mini T + U
20B0010	Tilt	9/16 X 1 1/4 (.562 X 1.292)	Both		Torque Plate	Round
20B0019	Tilt	9/16 X 1 1/4 (.562 X 1.292)	Both			Mini T
21B137	Tilt	7/8 X 1 1/4 (.880 X 1.292)	Both		Torque Plate
21B186	Tilt	3/4 X 1 1/4 (.750 X 1.292)	Both		Torque Plate	Mini T + Round

Related products

ULTRA-LIFT^®

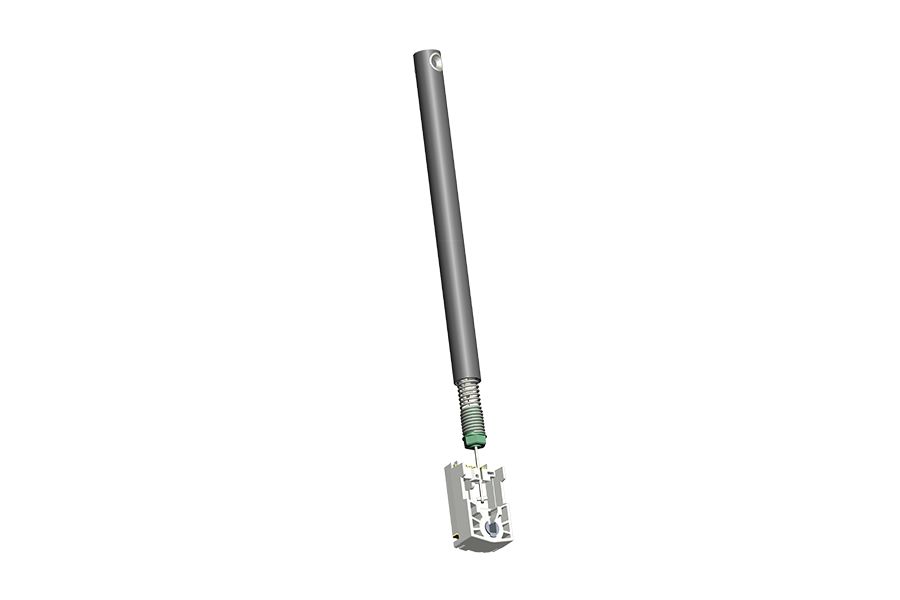

Caldwell’s Hybrid Balances are ideal for heavier window sash applications: ULTRA-LIFT^® balance is pre-tensioned so that it optimally operates the heavier window sash with manageable effort. Available with 0.670” and 0.750” diameters, for weight ranges up to 200 lbs (tandem).
ULTRA-LIFT^® EXTREME
Caldwell’s Hybrid Balances are ideal for heavier window sash applications: ULTRA-LIFT^® EXTREME balance is pre-tensioned so that it optimally operates the heavier window sash with manageable effort. Available with 0.670” and 0.750” diameters, for weight ranges up to 130 lbs.^

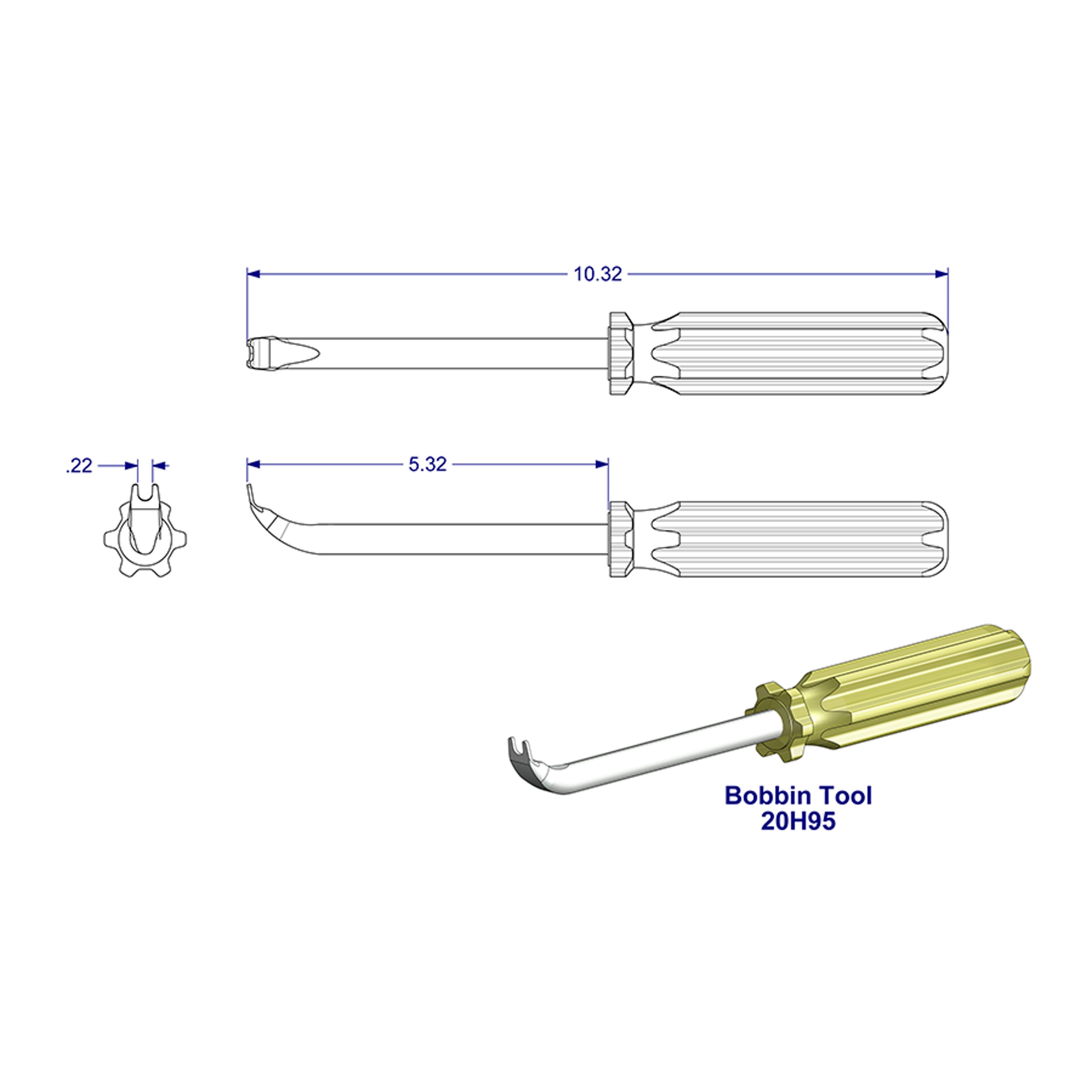

Series77t Assembly Tools
