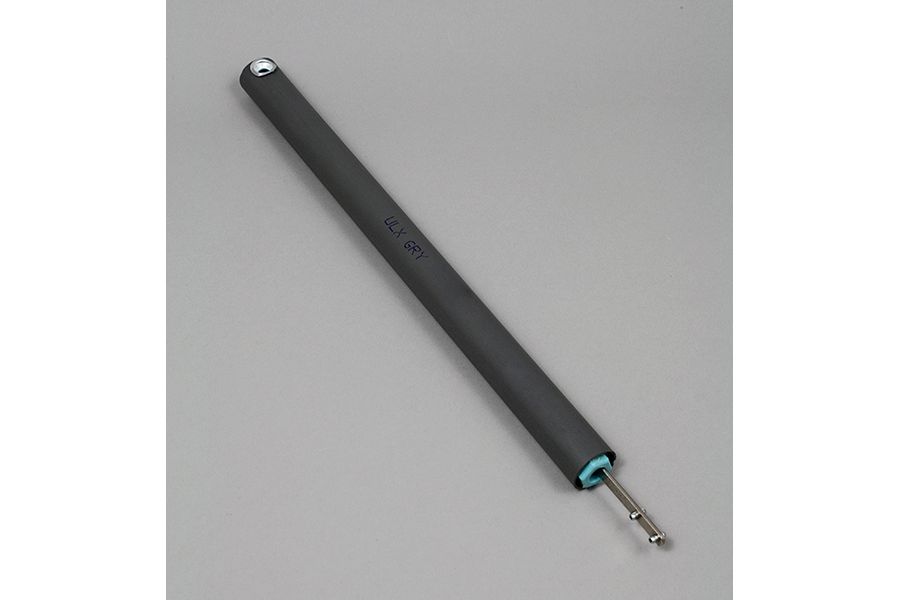

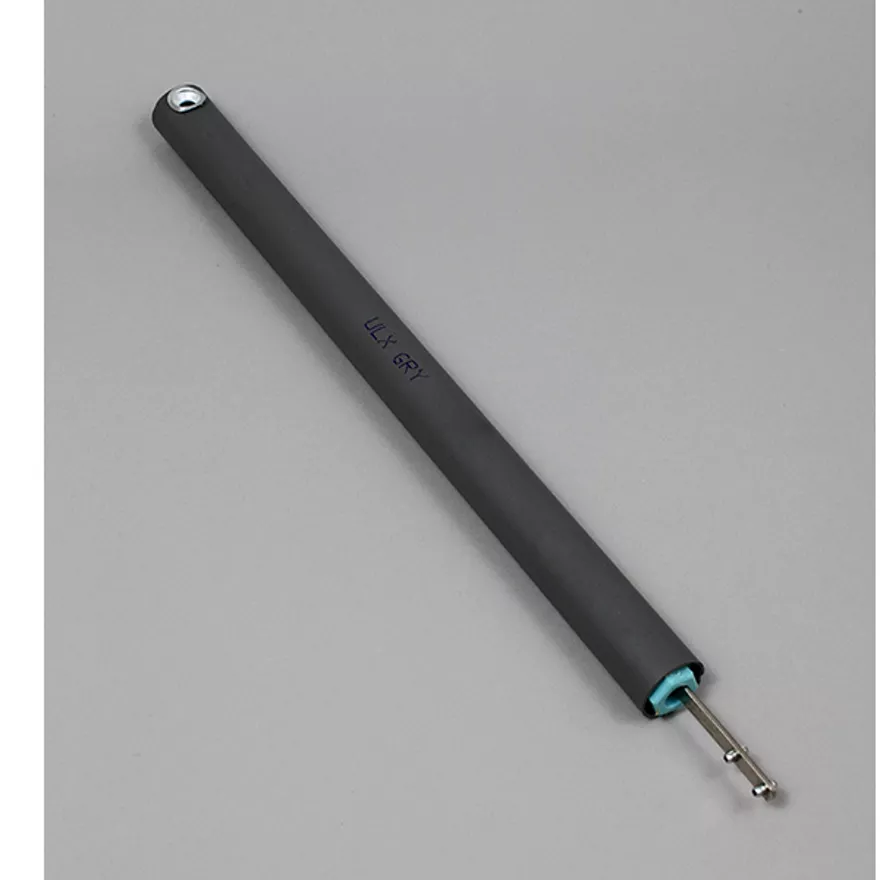

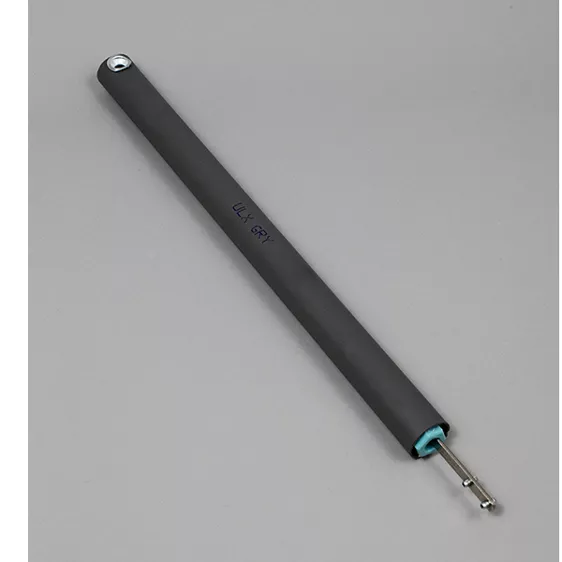

ULTRA-LIFT® EXTREME
Caldwell’s Hybrid Balances are ideal for heavier window sash applications: ULTRA-LIFT® EXTREME balance is pre-tensioned so that it optimally operates the heavier window sash with manageable effort. Available with 0.670” and 0.750” diameters, for weight ranges up to 130 lbs.^
ULTRA-LIFT® EXTREME is the INDUSTRY ONLY AAMA Class 6 verified with a weight capacity of 26-80 lbs^ for .670 diameters, 81-130 lbs^ for .750 diameters.
Product Features
- High lift assistance, making a heavy sash easy to operate
- AAMA Class 6 rating: Balance lifts 80% of sash weight
- Rust resistant low carbon coated steel rod with low friction
- Caldwell’s Music Wire Springs offer more consistent and dependable output
- Custom built for optimal balance performance, for your window design
- Available in White, Gray, Black or Tan PVC tubes
- Tilt, Non-Tilt or Sideload Application: carrier dependent
ULTRA-LIFT® EXTREME
BALANCE SIZE .670 or .750 TRAVEL (EXTENSION) (Balance No. x 2) - 2.25" TRAVEL (RETRACTION) Balance No. + 2" SASH WEIGHT CAPACITY .670: 26 lbs - 80 lbs^ .750: 81 lbs - 130 lbs^ EGRESS CAPABLE Yes BALANCE LENGTH (MIN) No. 8 inches* BALANCE LENGTH (MAX) No. 60 inches* BALANCE TYPE Tilt, Non-Tilt OR Sideload MOUNTING METHOD Screw PRETENSIONED Yes SINGLE OR TANDEM APPLICATION Single COLOR White, Gray, Black, Tan BOX QUANTITY No Standard Box Qty * Note: Actual tube length is 1/2 inch longer than the balance number
^ Specific Weight Ranges are Dependent On Balance Length. See Weight Capacity Chart for Specific Weight Offerings by Length.
Related products

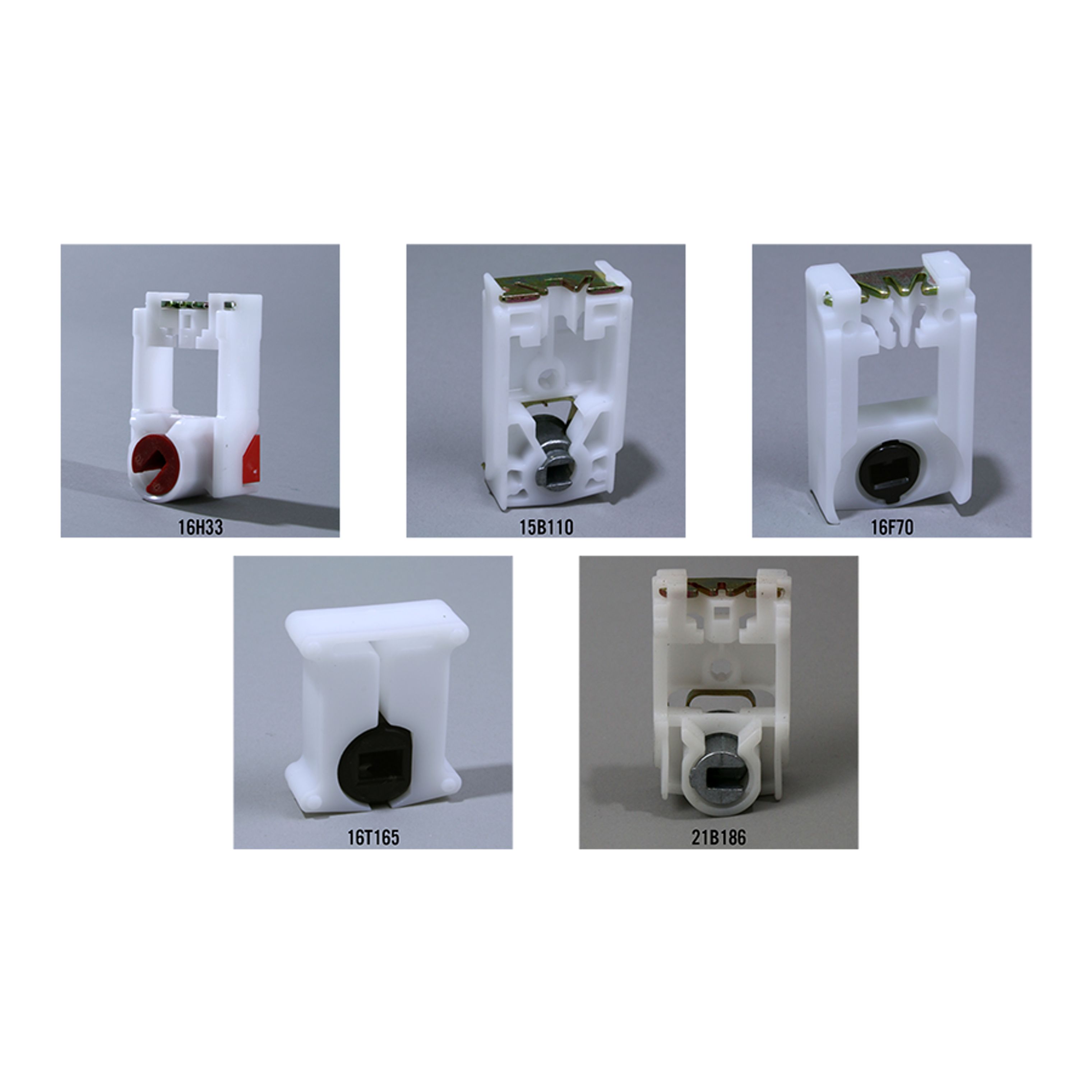

Tilt Carriers

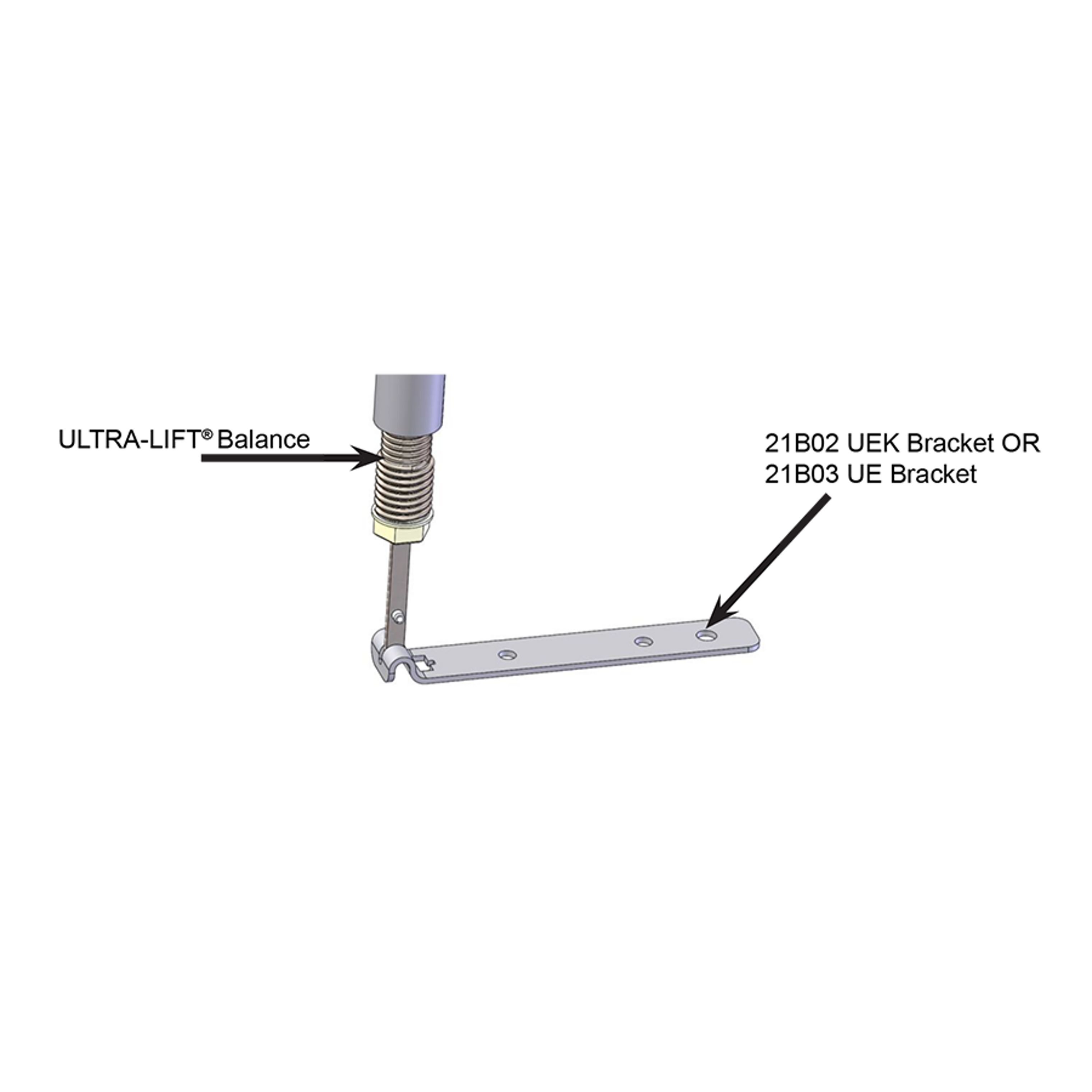

UE/UEK Brackets

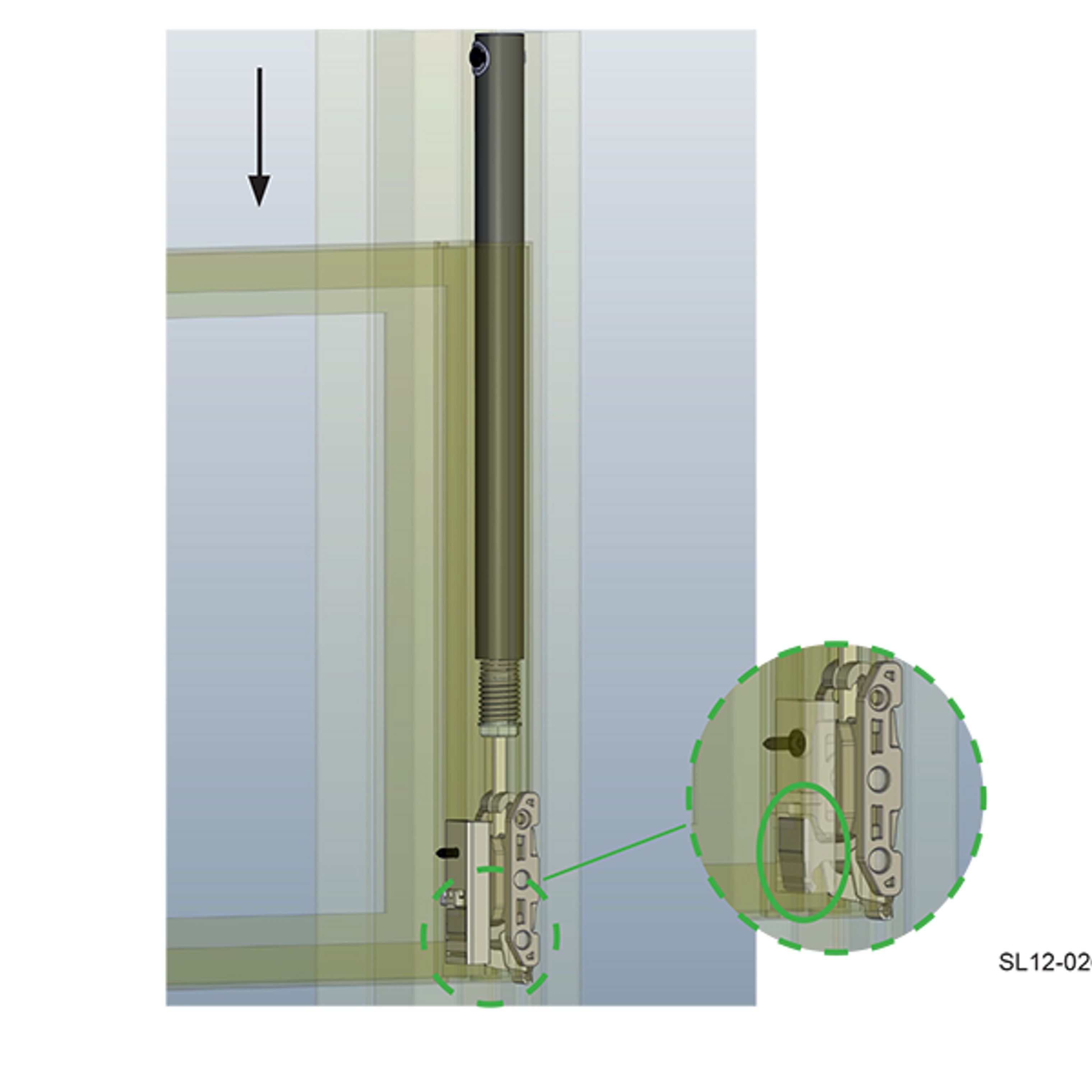

ECO Carriers® & Brackets
