APEX®

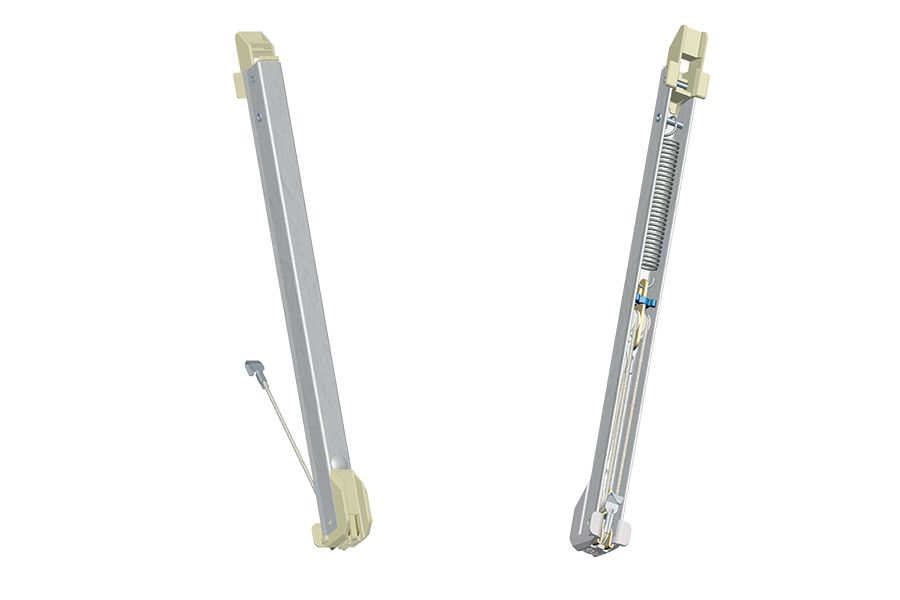

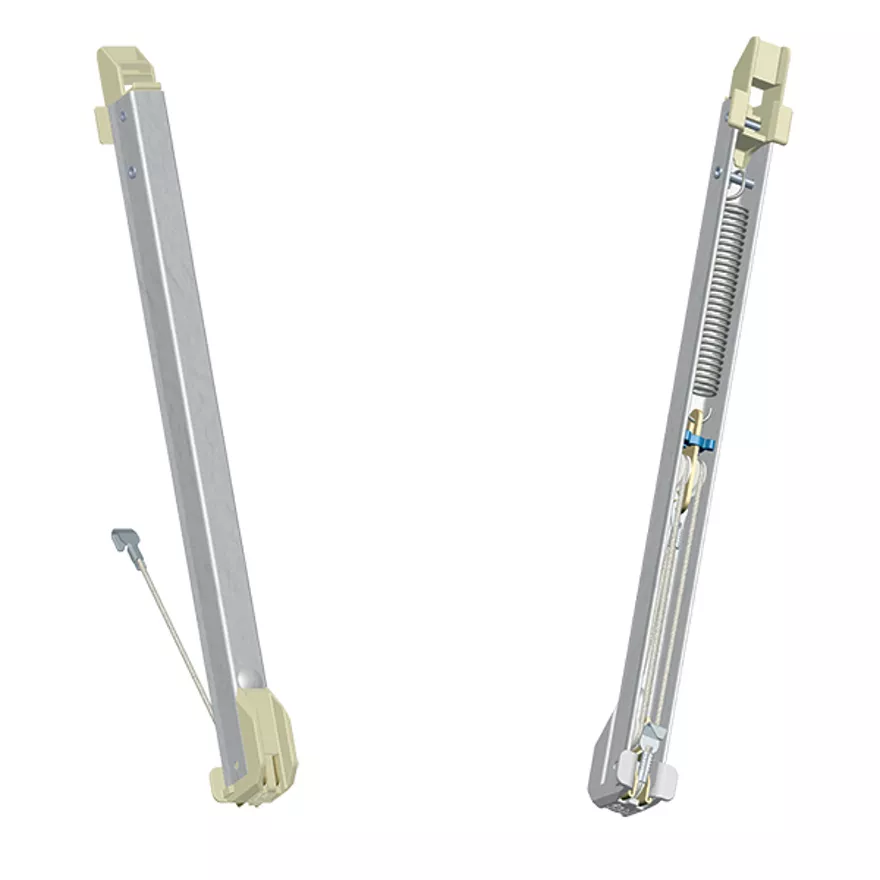

An extended travel Block & Tackle Balance for sideload applications: Caldwell’s APEX^® balance is available with multiple end guide configurations, for different jamb sizes.
APEX^® succeeds AAMA Class 2 with a weight capacity of 2-53 lbs.

Product Features

Extended travel allowing for egress windows
Caldwell’s Music Wire Springs offer more consistent and dependable output
Remarkably consistent & smooth operation
- Independently rotating pulley wheels
- Stronger hemmed channel edges
- Parked mounting hook remains centred
Elongated bottom guides provide design and application flexibility

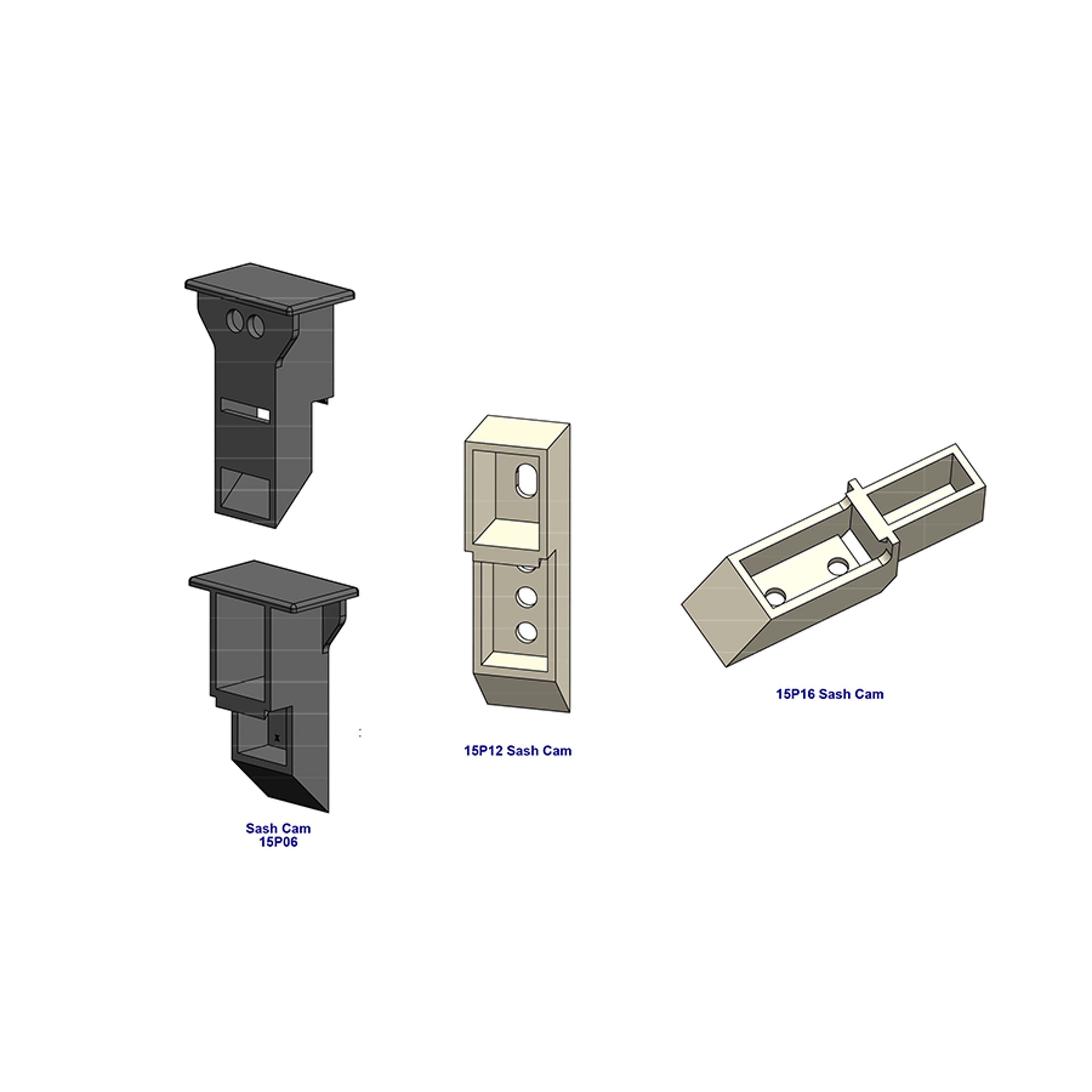

End Guide Configurations to easily fit into your jambs
- Winged and Non-Winged Options
- Single or Dual Springs to fit your weight requirements

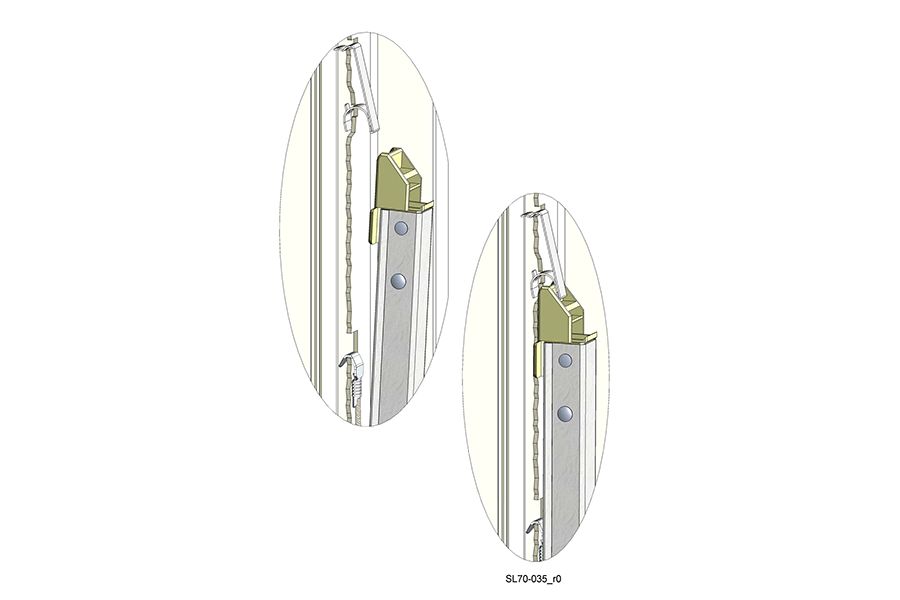

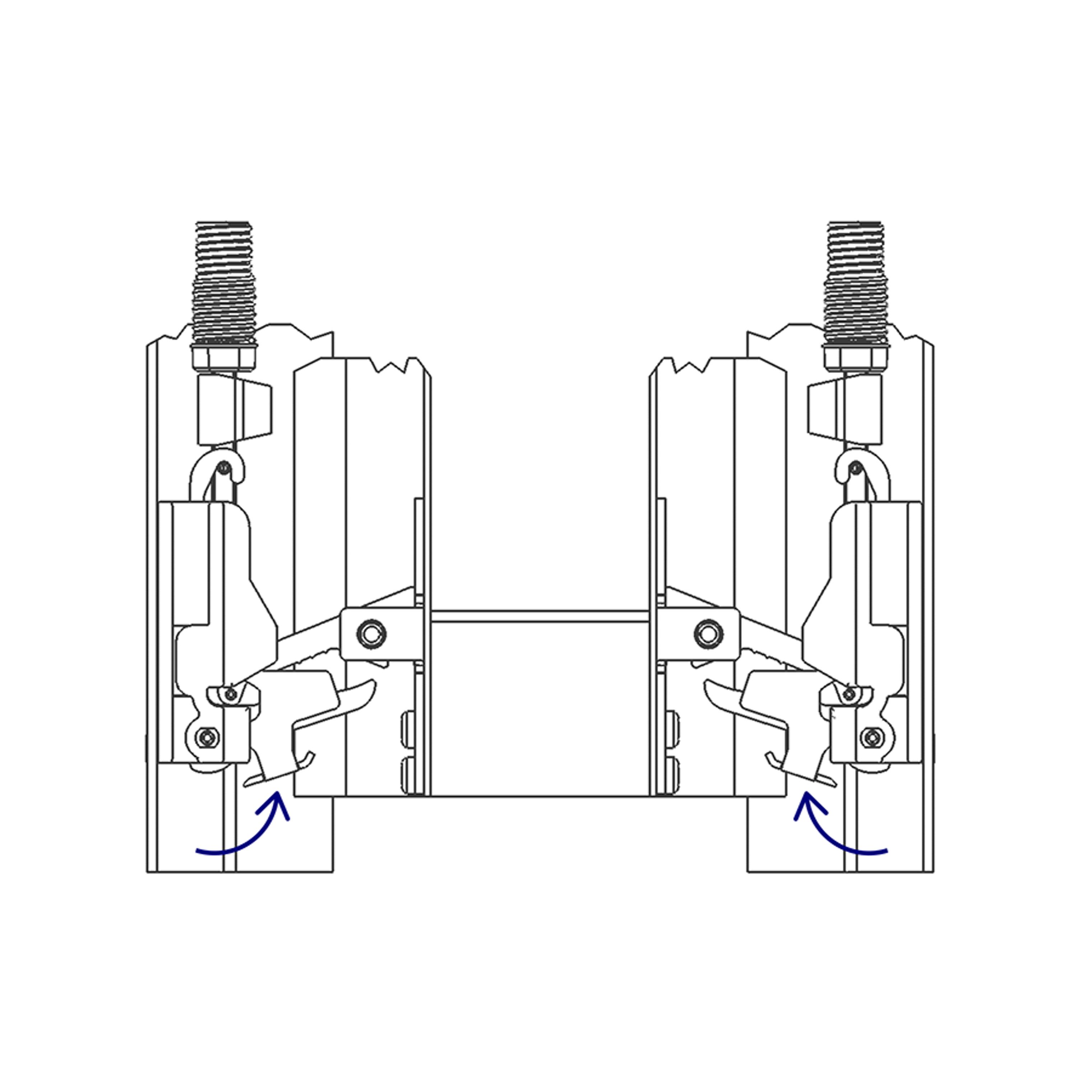

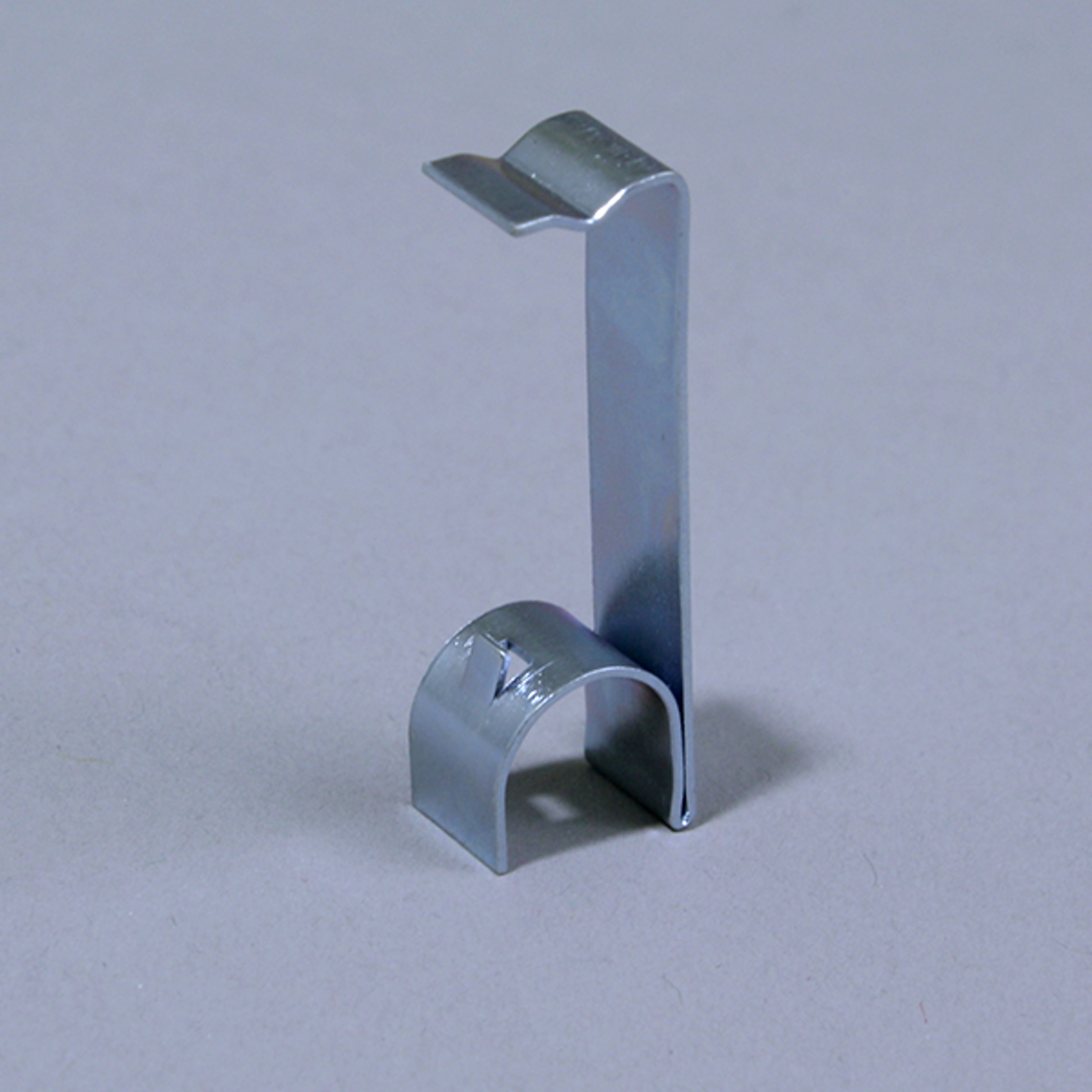

Optional 15P19 HD Take Out Clip to ease sash removal

BALANCE SIZE	.66” x .645”
TRAVEL (EXTENSION)	CL – .7” + 2.5 OT
TRAVEL (RETRACTION)	.25” min.
SASH WEIGHT CAPACITY	2 lbs - 53 lbs
EGRESS CAPABLE	Yes
BALANCE LENGTH (MIN)	7 inches
BALANCE LENGTH (MAX)	59 inches
BALANCE TYPE	Sideload
CHANNEL PROFILE	Rectangular
USING JAMBLINER	No
MOUNTING METHOD	Hook Mount
TOP GUIDE	Multiple End Guide Configurations
BOTTOM GUIDE	Multiple End Guide Configurations
SINGLE OR TANDEM APPLICATION	Single
CORD TERMINAL	15R27 Hook
COLOR	Mill
FINISH	Galvanized
BOX QUANTITY	50

The balance size is equal to the channel size minus one.
Example: a 33 inch channel requires a #32 balance.
