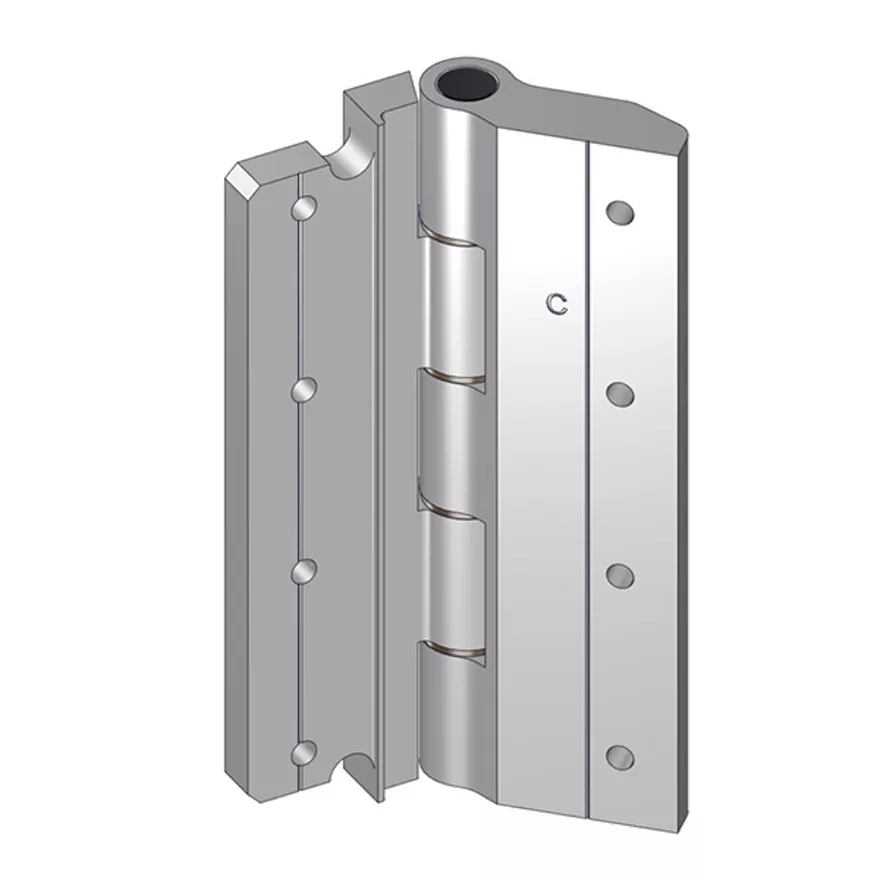

Custom Profile Butt Hinge

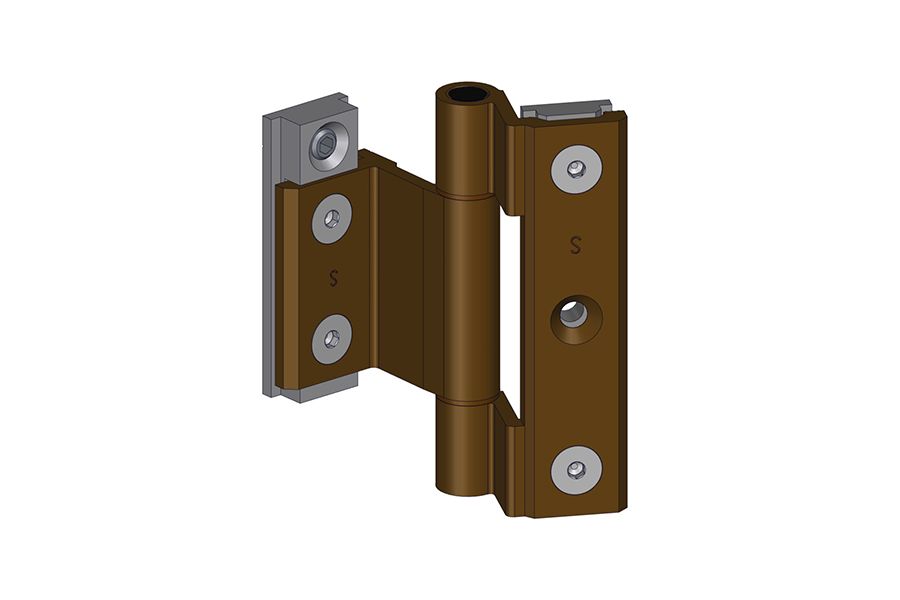

Caldwell’s Custom Profile Butt Hinges are fully assembled and profile specific for casement applications.
Also available for euro-groove profiles.

Product features

Finishes Available: 7 Anodized Colors or Chromate Conversion
Proprietary Brushing Design
- Heat Resistant to 480° F Baking Temperature When Painting
- Self Lubricating: Smooth Operation
- High Tensile Strength
Stainless Steel Pin
- Coated to Prevent Galvanic Reaction
- Double Headed Pin to Provide Safe & Secure Operation
Available in 3 & 5 Leaf Designs

NUMBER OF HOLES	Application Specific
BARREL SIZES	.400, .500

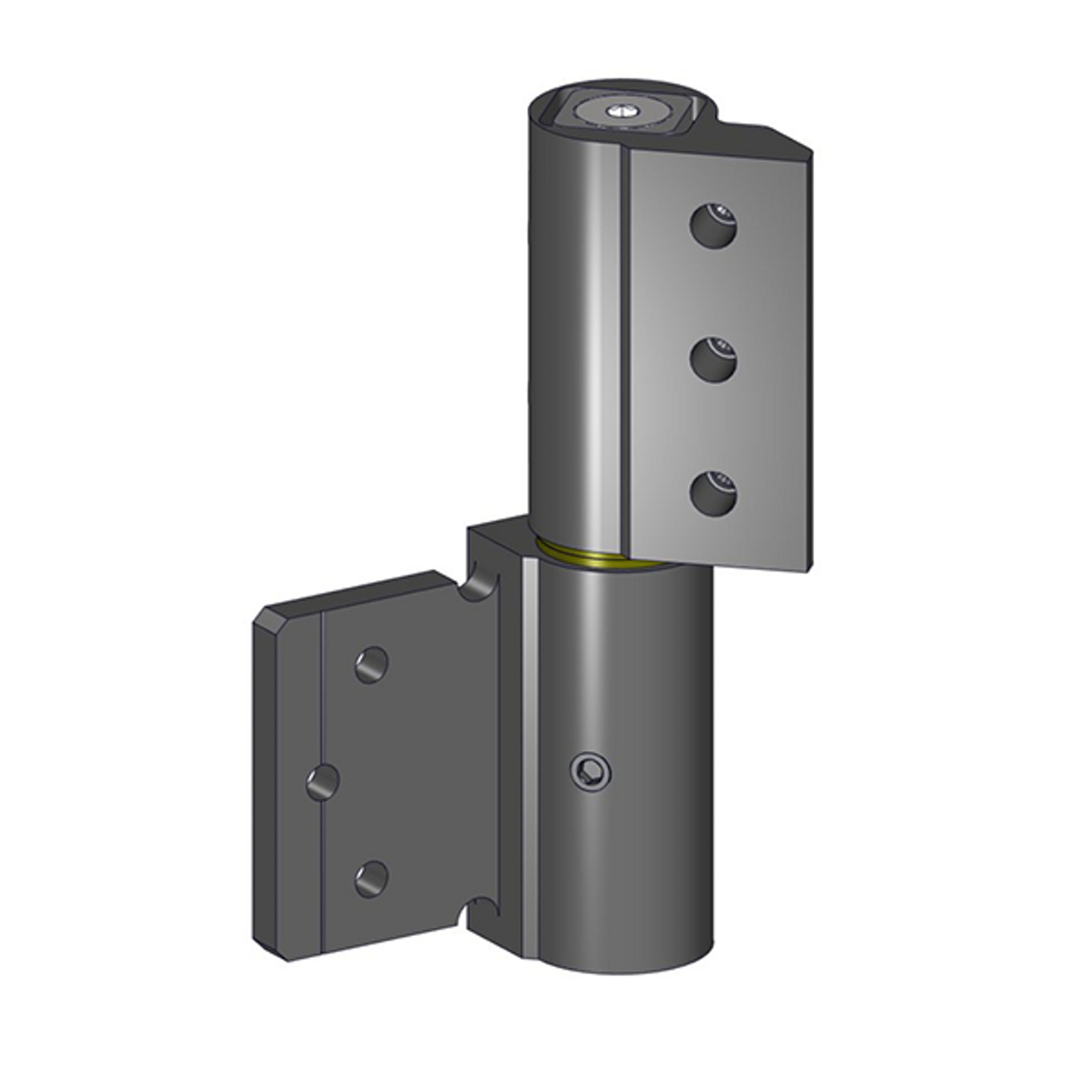

KNUCKLES AVAILABLE	2, 3 and 5
FLANGES	Available
LENGTHS AVAILABLE	2.25, 3.25 and 4.25 inches
ANNODIZED COLORS AVAILABLE	Clear, Champagne, Light Bronze, Medium Bronze, Dark Bronze, Extra Dark Bronze, Black
CHROMATE CONVERSION	Can Be Painted with Bake Temperatures to 480 degrees F
OPTIONS AVAILABLE	Panel, Concealed, Structural Glazed, Doors, Euro-groove*
HINGE MATERIAL	6000 Series Aluminum Alloy
PIN MATERIAL	Coated Stainless Steel
BUSHING MATERIAL	High Tensile, High Temperature
WINDOW MATERIAL	Aluminum, Wood, Vinyl
MAXIMUM STATIC VENT WEIGHT	Vent Size Dependent

*Euro-groove butt hinges are currently only available with .500 barrel size, 3 knuckles & 3.25 inch length.

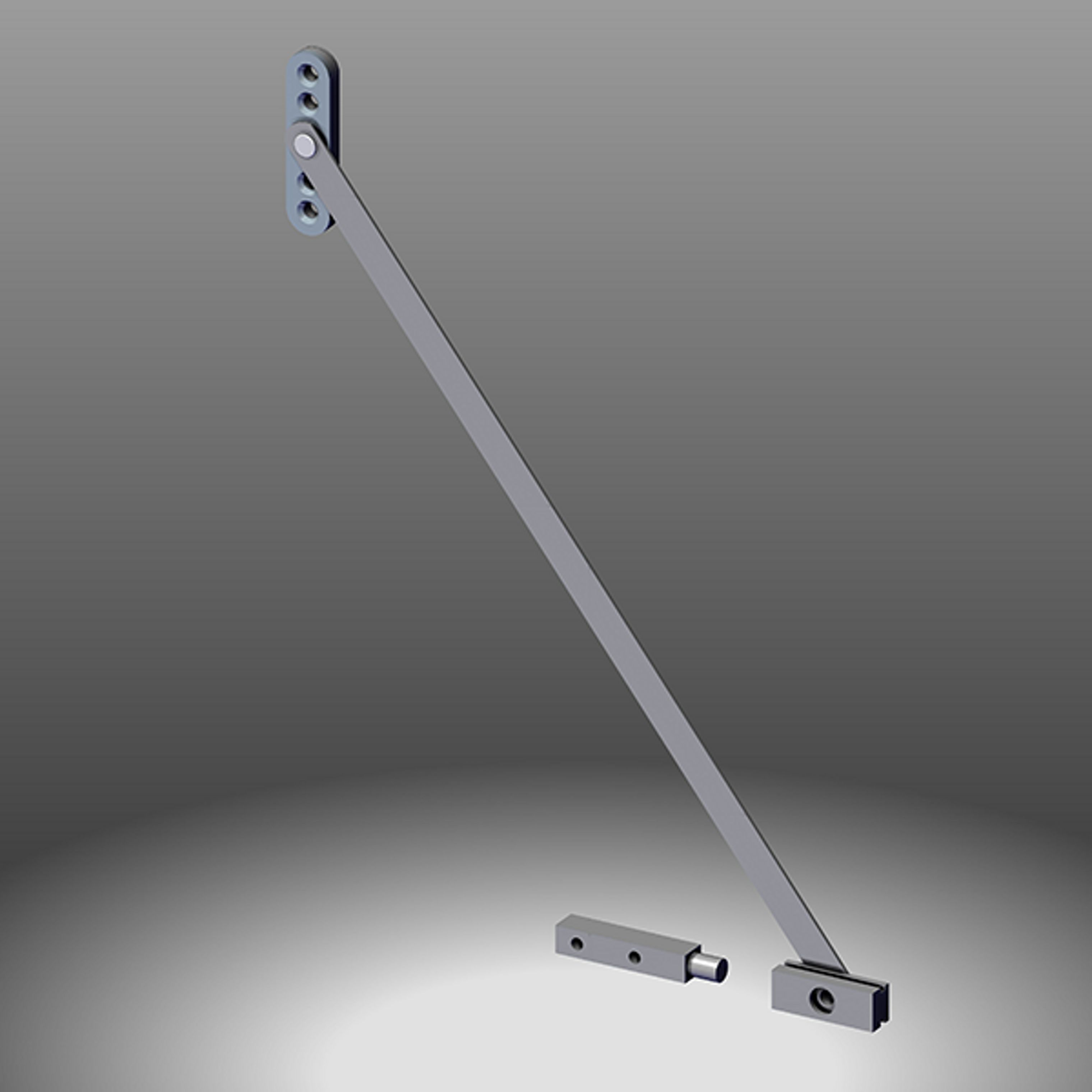

Concealed Door Stops or Friction Adjusters are Recommended with all Butt Hinge Applications.
