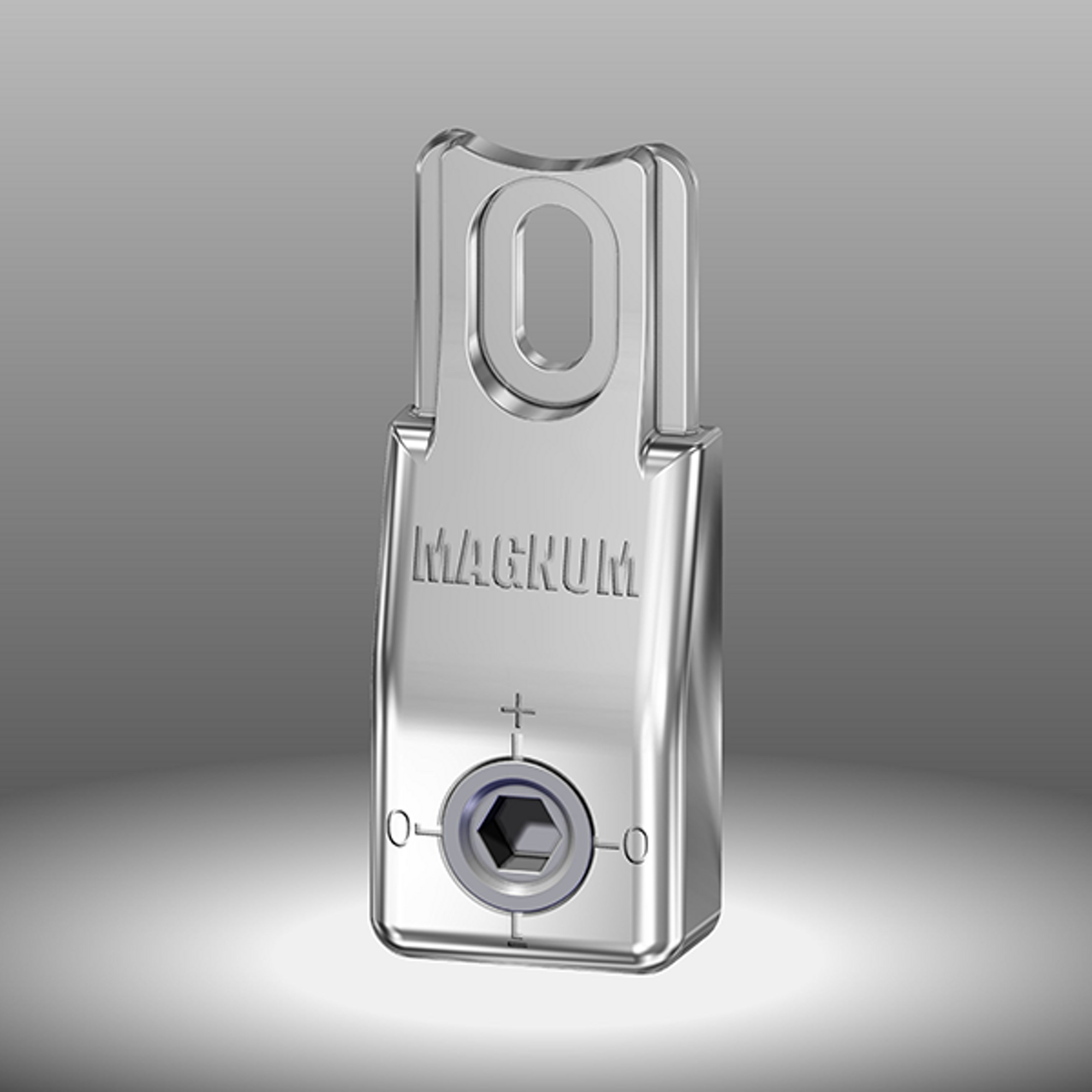

Bi-Fold Hinges

Caldwell’s MAGNUM® Bi-Fold Hinges for use with top hung, outswing bi-fold doors. Field adjustable, 300 series stainless steel pins and guides, with extruded aluminum alloy hinge leaves.

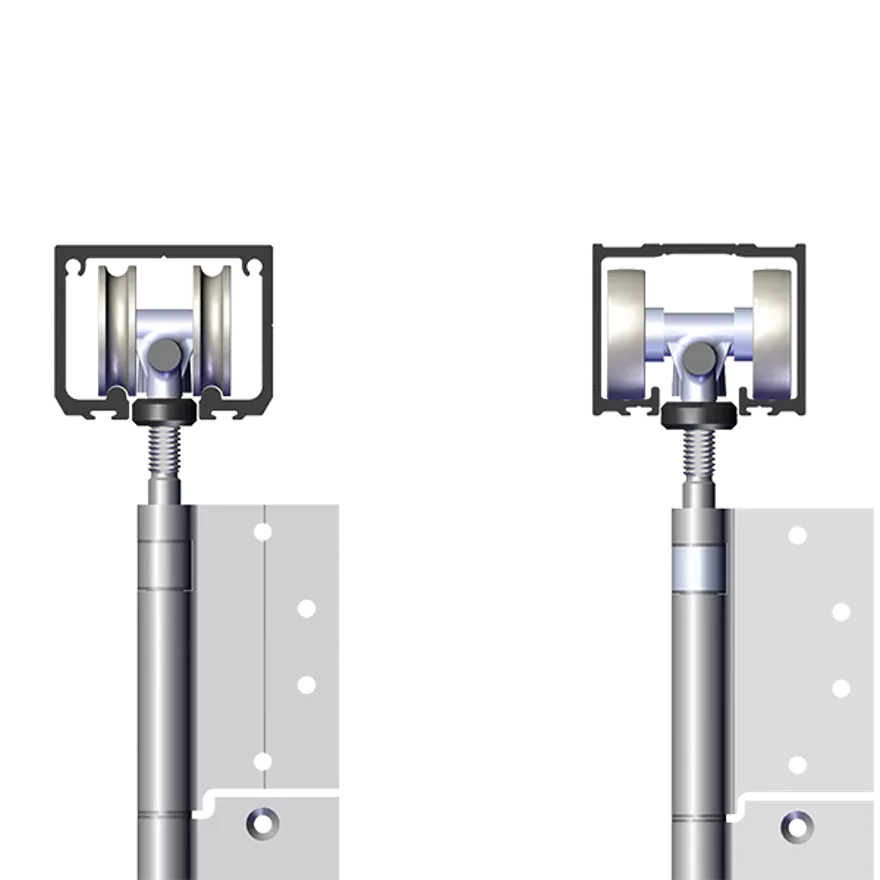

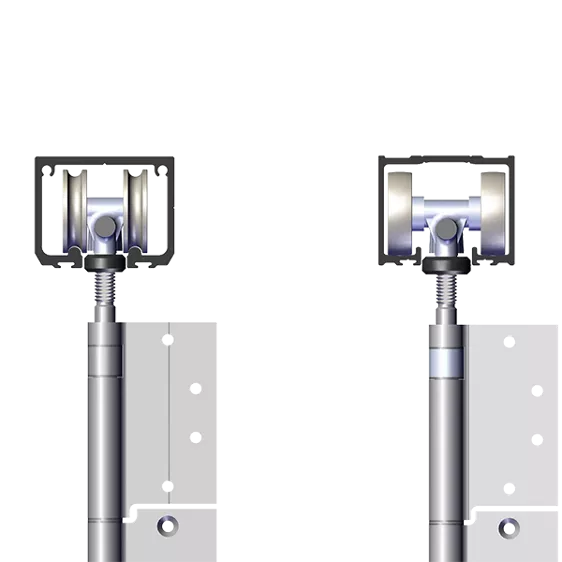

Available series B or series C.
Available by the Piece, Hinge Set or Full Hardware System

Product features

  • Robust Features for Higher Structural Loads
    • Staked Stainless Steel Pins & Guides
    • Reinforced Intermediate Bottom Guides
  • Extruded Aluminum Friction Stay Hinges
    • 20 Years of Proven Field Experience
    • Maximum Adjustment Without Hinge Deflection
    • Unique Stay Feature Reduces System Drift & Panel Damage
  • Easy & Expanded Adjustment Features for Top & Bottom Pivot Sets
  • Quiet, High Performance Stainless Steel Bearings Wheel System
  • Custom Color Matching Available
  • Complete Concealed Locking System Available
  • DOOR TYPETop Hung
    OPENING DIRECTIONOutswing
    MAXIMUM PANEL WEIGHT250 lbs
    PANEL THICKNESS1 3/4", 2", 2 1/4"
    MAXIMUM NUMBER OF PANELS8 Each Way
    MAXIMUM OPENING WIDTH24.5'
    MOUNTING TYPESurface Mount
    NUMBER OF HOLESApplication Specific
    LEAF DEPTH1.75", 2"
    LEAF THICKNESS0.15"
    BARREL SIZE0.625"
    STANDARD COLORS AVAILABLEBlack, Color Neutral
    "STANDARD CUSTOM" COLORS AVAILABLEWhite, Bronze
    CUSTOM COLOR MATCHAvailable
    FIELD ADJUSTABILITYVertical & Horizontal
    MATERIAL TYPEAluminum & Stainless Steel
    SCREW INCLUDEDYes
    SCREW SIZE#10
    SCREW MATERIALStainless Steel
    COUNTRY OF ORIGINUSA

    Additional charges and lead-times may apply to Custom Finishes, including “Standard Custom.”

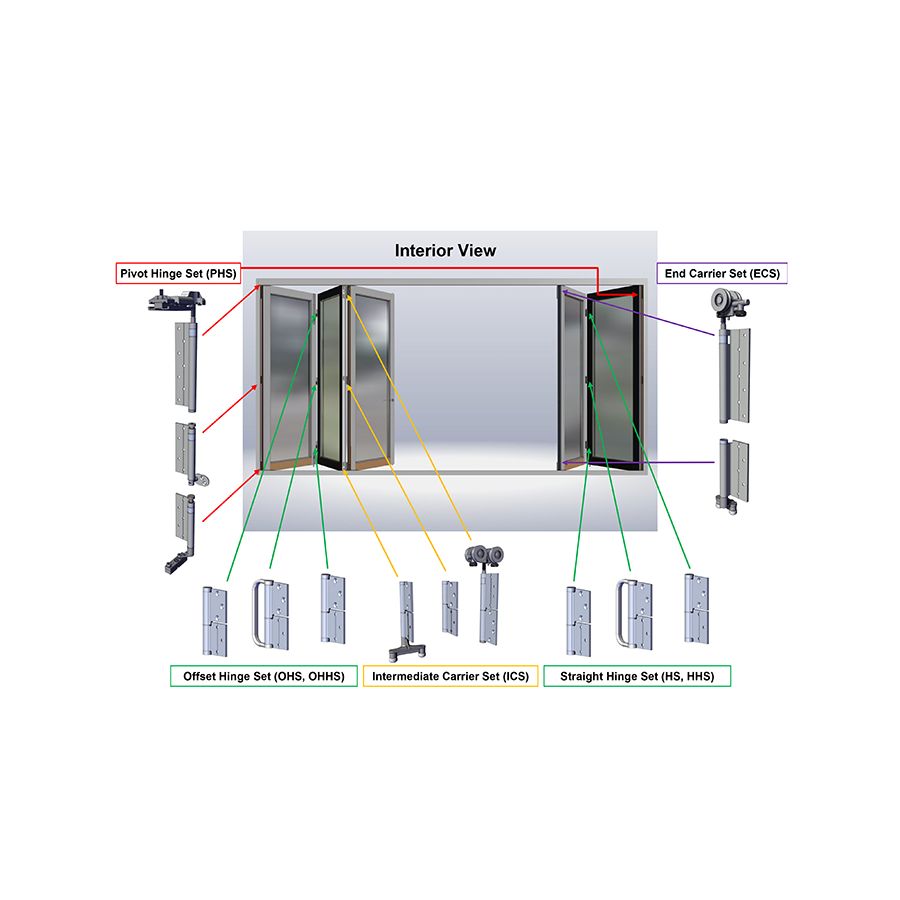

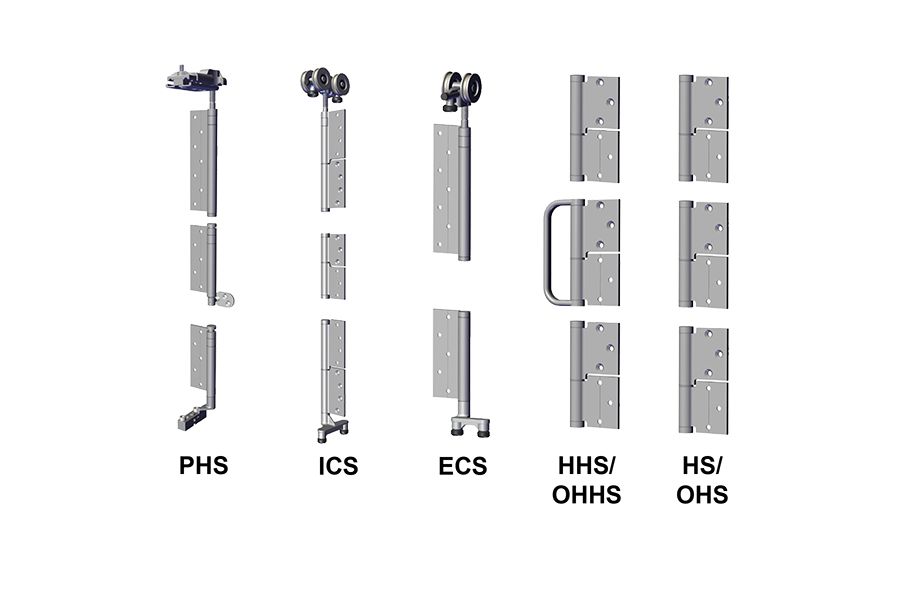

  • Hardware Placement Layout by Configuration(PDF, 7 MB)
    MAGNUM® Bi-Fold Outline Drawing Package(PDF, 7 MB)
